Computerized Lock Stitch Quilting Machine For Textile Production 1650mm/2450mm Sewing Width 220V/380V 3-Phase
Product Details:
| Place of Origin: | China，Guangdong |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGC Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Film&Paper |
|
Detail Information |
|||
| Product Name: | Shuttle Multi-Needle Quilting Machine | Suitable For: | Quilting Patterns |
|---|---|---|---|
| Machine Condition: | New | Machine Application: | Garment, Bedding, Comforter, Textile，leather，seat Cover |
| Sewing Width: | 1650mm/2450mm | Material Thickness: | ≤25mm |
| Video Outgoing-inspection: | Provided | Sewing Speed: | 100-1000 R/min |
| Needle Model: | 16#/19# | Voltage: | 220V/380V，3-Phase |
| Power: | 3.5KW/5.5KW | ||
| Highlight: | 2450mm Lock Stitch Quilting Machine,Textile Production Lock Stitch Quilting Machine,3 Phase Lock Stitch Quilting Machine |
||
Product Description

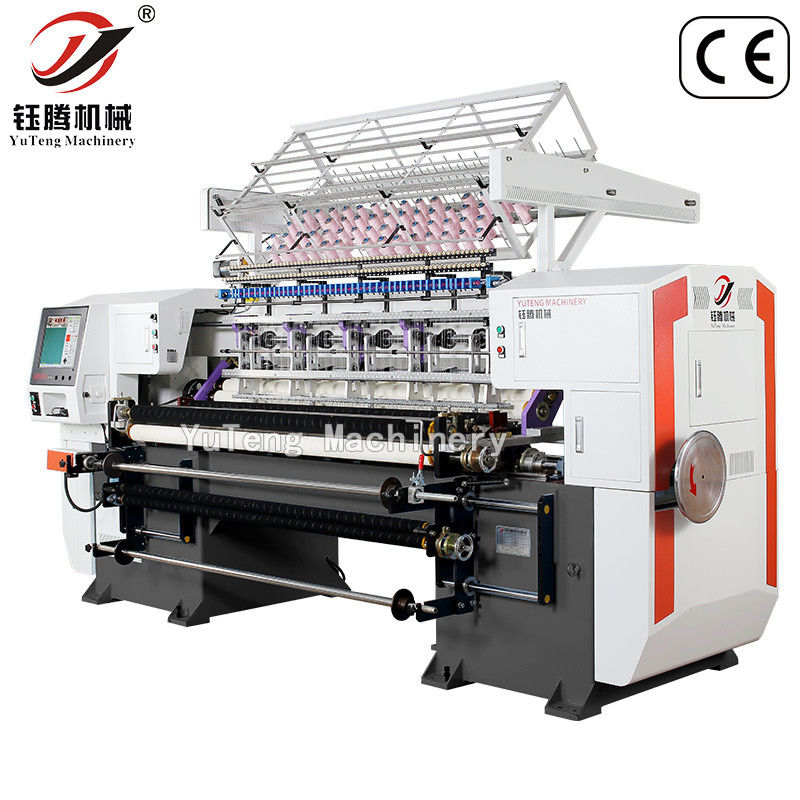

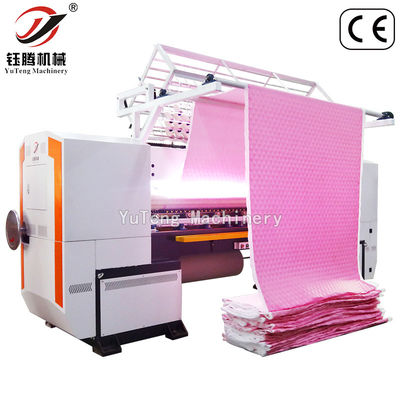

High Speed Computerized Shuttle Lock Stitch Multi-Needle Quilting Machine
Product Usage:
It is widely used for quilting high-quality garments, quilt covers,hand bags, gloves, sleeping bags, pajamas, bed, spreads, seat covers, plus material and household ornaments.
Special Features:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Main Technical Parameters:
| Model | YGC64-2-3 | YGC64-3-4.5/5 | YGC64-3-6 |
| Dimension(L*W*H) | 3800*1200*1800(mm) | 3800*1200*1800(mm) | 3800*1200*1800(mm) |
| Quilting Width | 1650mm | 1650mm | 1650mm |
| Needle rows | 2 | 3 | 3 |
| Space between needle rows | 3'' inch | 3''+1.5" inch/3''+2" inch | 3''+3" inch |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 203.2mm | 228.6mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P |
| Total power | 3.5KW | 3.5KW | 3.5KW |
| Gross weight | 3300kg | 3300kg | 3300kg |
* Can be customized according to customer requirements
Our Factory:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Related machines:
Our Services:
1.Quality assurance
2.Reliable price
3.Video and picture sharing
4.Safe and efficient transportation
5.Ensure customer payment security
6.Supply professional technical parameters
7.Dedicated customer service staff(24 hours online)

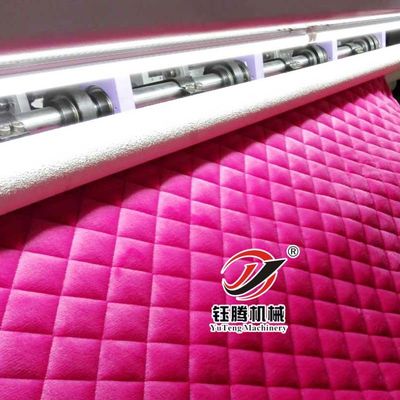

Pattern Display:
FAQ:
Q1: Are you manufacturer?
A1: Yes, welcome to visit our factory.
Q2: Which kind of payment terms do you accept?
A2: TT acceptable.
Q3: Delivery time?
A3: A Normally 45 days after payment. lf the machine you need is in stock,we can ship it shortly.
Q4: What is your after-sale service?
A4: Our warranty period is 1 year and provide customers with timely technical support and training.
Welcome to contact with us,for more information of quilting machine.
