Multi Needle Lock Stitch Quilting Machine High Precision 380V 50HZ 3 Phase
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800r/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Single Head | Moving Style: | Frame Moved |
| Voltage: | 380V 50HZ,220V/50HZ,3-Phase | Power: | 3.5kw |
| Dimension(L*W*H): | 3800mm*1200mm*1800mm | Weight: | 3300kg |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Shuttle Model:: | 7#,10# | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | Port: | Shenzhen/Guangzhou |
| Highlight: | Multi Needle Lock Stitch Quilting Machine,Precision Lock Stitch Quilting Machine,3 Phase Multi Needle Quilting Machine |
||
Product Description
Lock Stitch Quilting Machine Multi Needle Quilting Machine Computerized Lock Stitch Multi Needle Quilting Machine
Product main features :
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB64-2-3 |
YGB64-3-6 |
|
Dimension(L*W*H) |
3800mm*1200mm*1800mm |
3800mm*1200mm*1800mm |
|
Quilting Width |
1650mm |
1650mm |
|
Needle rows |
2 |
3/3/3 |
|
Space between needle rows |
3" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
203.2mm |
304.8mm |
|
Thickness of quilting |
25mm |
25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(r/min) |
300-800(r/min) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3300kg |
3300kg |
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :

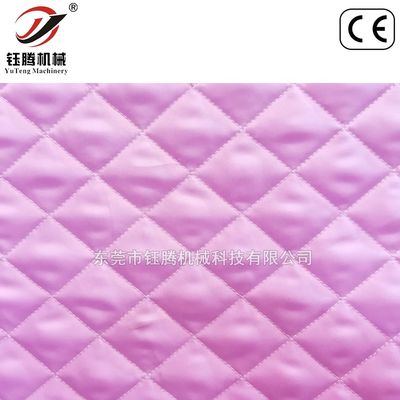

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

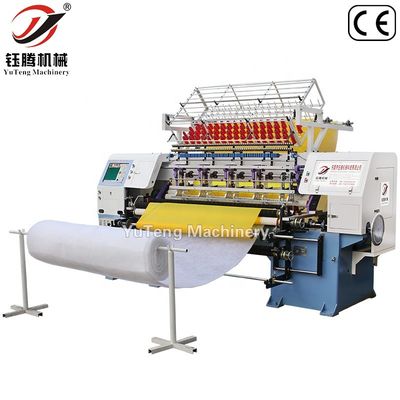

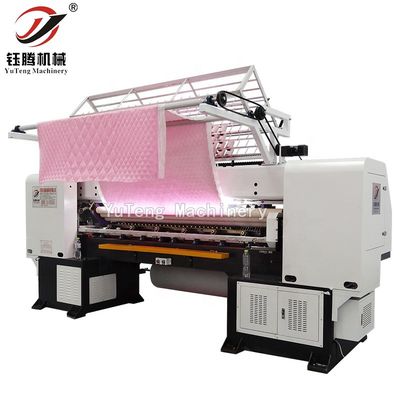

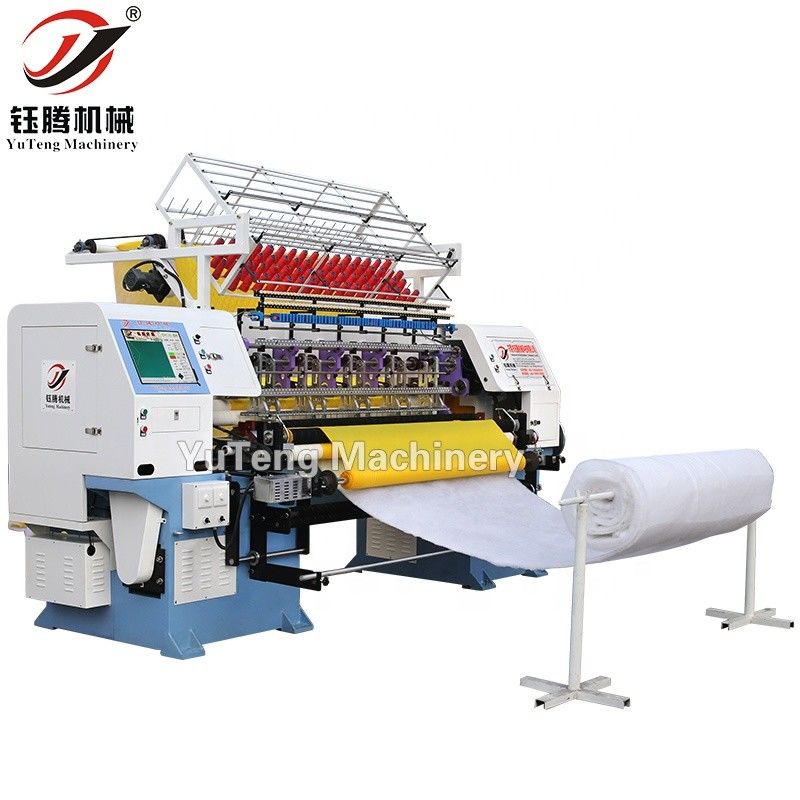

Quilting Machine Pictures :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
