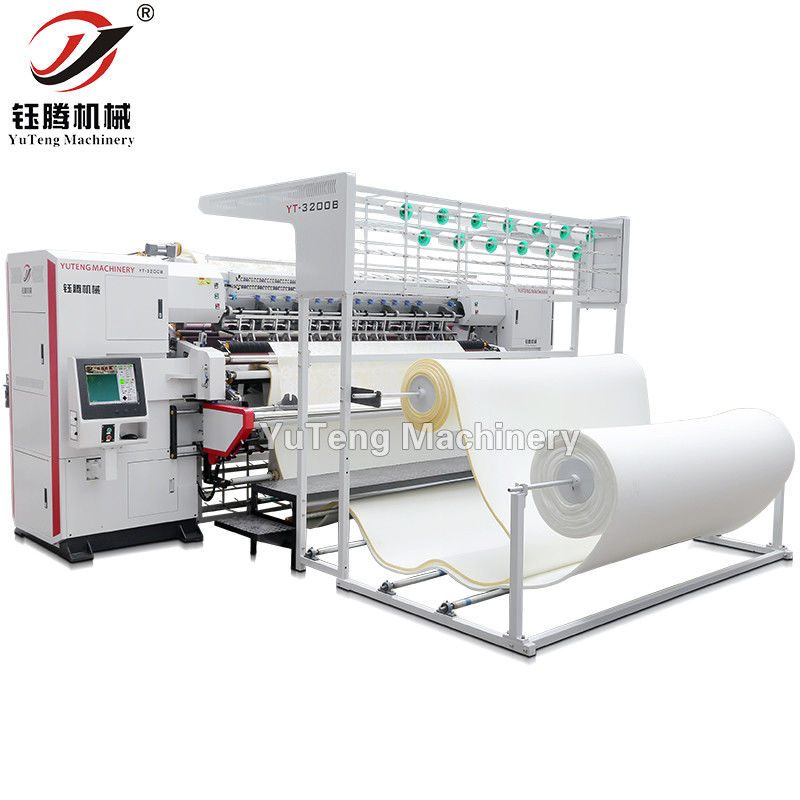

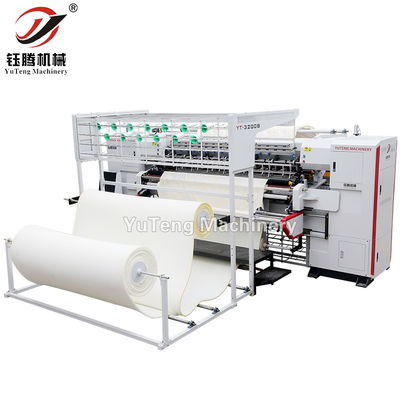

Automatic Computerized High Speed Multi needle Chain Stitch Quilting Machine for Making Mattress Sofa Cover Blanket Quilt
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng Brand |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Working Width: | 245CM | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Core Components: | PLC, Motor | Place Of Origin: | Guangdong,China |
| Brand Name: | YuTeng | Sewing Speed Of Operation: | 60-260m/h |
| Max Sewing Thickness: | 8CM | Quilting Speed: | 100-1200r/min |
| Highlight: | Multi-needle Chain Stitch Quilting Machine,High Speed Industrial Quilting Machine,Automatic Computerized Quilting Machine |
||
Product Description
Automatic Computerized High Speed Multi-needle Chain Stitch Quilting Machine
Product Description:
It is widely used for mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.
Machine Features:
1. New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2. 360°Multi-span and independent patterns, automatic thread trimming function.
3. Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability.
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function.
6. Adopt international advanced slice thread trimming function, effectively reduce the probability thread jump, more stable.
7. Strong function of pattern-combining and multi-span( Tack&Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
9. Infrared safety protection and Auto-stop sensors detection function.
Technical Parameters:
| Model | YT-3200B |
| Dimension(L*W*H) | 5050*1600*2300mm |
| Quilting Width | 2450mm |
| Needle Rows | 3 |
| Space between needle rows | 3”+2”, 3”+3” |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm(or above) |
| Thickness of quilting | equal or less than 80mm |
| Stitch length | 2-12mm |
| Speed of operation | 60-260(m/hour) |
| Model of needle | 24/180,23/160 ,22/140, 21/130 |
| Quilting speed | 100-1200(r/min) |
| Voltage | 380V/50HZ 220V/60HZ |
| Total Power | 8KW |
| Gross Weight |
5500KG |
Related Products
:
Support and Services:
1. According to seller's standard designed drawing diagrame to arrange the production and inspection.
2. We can help check the freight cost before the shipment, and we can help customer to load the container from other suppliers' goods.
3. Offer installation video and manual, if customer reqiure, one techincian sent by seller.
4. We accept OEM, do customers' logo.
Packing and Shipping:
FAQ:
Q1: What’s the warranty year of machines?
A1: One year, except the wearing parts.
Q2: How to guarantee the machine quality?
A2: Before loading, our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is OK and we will send the photos and videos to you confirm.
Q3: How to install and operate the machine after received the machine?
A3: We will provide pictures, videos and manual to guide you to install and operate. We also provide the technician to door service if you need.
Q4: How to solve the problem during the use of machine?
A4: If any questions during the use, please send us the description of problem together with pictures or videos,our professional after-sales team will reply you immediately.
