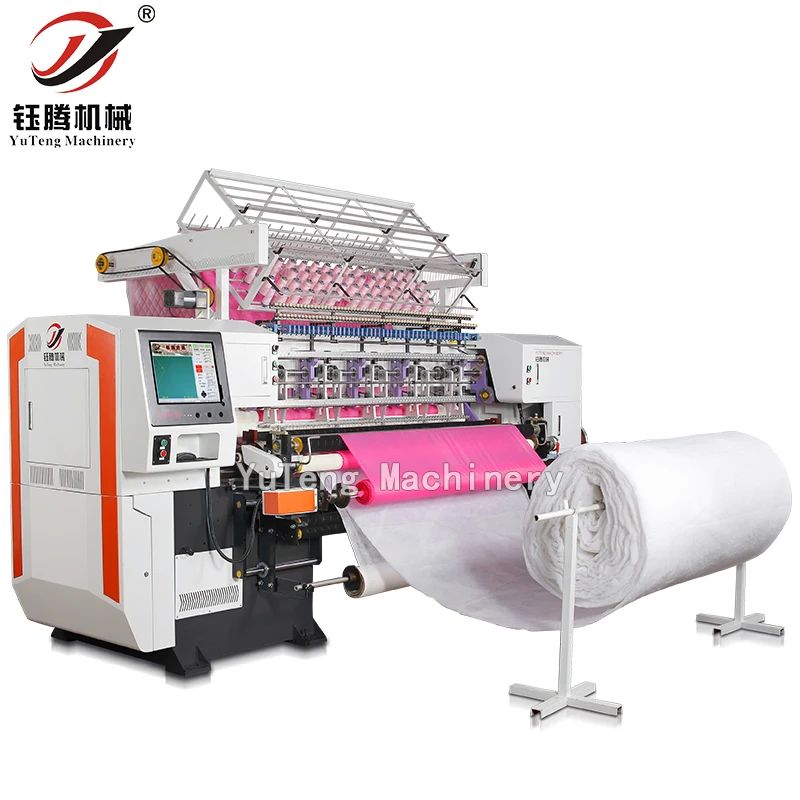

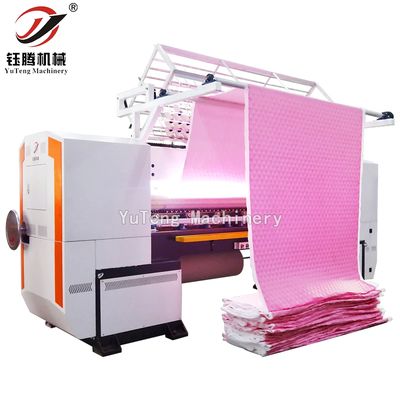

Factory Use Computerized Automatic Shuttle Multi Needle Quilting Machine For Making Garments Home Textile Product
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YGC64 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Condition: | New | Type: | Industrial Sewing Machine |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant | Max Sewing Thickness: | 25mm |
| Stitch Length: | 2-12mm | Production Speed: | 20-160(m/hour) |
| Space Between Needle: | 1 Inch | Shuttle Model: | 7#/10# |
| Needle Model: | 14#/16#/19# | Weight: | 3300kg |
| Highlight: | Home Textile Quilting Machine,Automatic Shuttle Quilting Machine,Multi Needle Quilting Machine |
||
Product Description
High-speed computerized lock stitch multi-needle quilting machine
Product Description:
It is designed for precise, high-speed stitching on garments,textile,seat cover,quilts, mattress covers, and bedspreads. It ensures durability, handles complex patterns, and is ideal for mass production in textile industries.
Machine Main Features:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Machine Technical Parameters:
| Model | YGB64-2-3 | YGB64-2-4.5 | YGB64-3-6 |
| Dimension(L*W*H) | 3800*1200*1800(mm) | 3800*1200*1800(mm) | 3800*1200*1800(mm) |
| Quilting Width | 1650mm | 1650mm | 1650mm |
| Needle rows | 2 | 3 | 3 |
| Space between needle rows | 3'' inch | 3''+1.5" inch | 3''+3" inch |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 203.2mm | 228.6mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P |
| Total power | 3.5KW | 3.5KW | 3.5KW |
| Gross weight | 3300kg | 3300kg | 3300kg |
*Can be customized according to customer requirements.
Product Detailed:
Machine in Exhibition
New aluminumalloy needle bar and press plate.The stand of bottom cloth separate from moving saddles.
Infrared safety protection.Auto-stop sensors detection function
Accurate and beautiful pattern
Available in multiple languages
Support and Services:
1.All parts are guaranteed one year for non-human-made damage
2.Before buying, our businessman online 12 hours every working day to answer your questions
3.In production,production pictures and videos are available any time
4.After buying,our engineer online 8 hours every working day to help you use machine correctly
5.We provide details machine installation & user’s guide and maintenance manua
