Factory Use Computer Shuttle Lock Stitch Multi Needle Quilting Machine For Quilt Bedding Making Product
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGB96 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Payment Terms: | T/T |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Home Textile Factory | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Max Sewing Speed: | 1000RPM |
| Max Sewing Thickness: | 25mm | Function: | Summer Quilt , Blanket ,Sleepbag |
| Needle Bar: | 2 Bar & 3 Bar | Shuttle Size: | 7# & 10# |
| Needle Bar Space: | 3"+1", 3"+1.5", 3"+2", 3"+3" | ||
| Highlight: | Computer Shuttle Quilting Machine,Multi Needle Quilting Machine,Bedding Making Quilting Machine |
||
Product Description
96 Inches Lock Stitch Multi-Needle Quilting Machine
Video Discription:
Description:
It is widely for quilting high-quality jackets garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover ,mattress covers, straight lines quilts, square quilts, diamond quilts and Wall decoration etc.
Machine Feature:
1. Adjusted speed by computer and the speed can reach 800r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Specification:
| Model | YGB96-2-3(S/B) | YGB96-3-4/4.5/5/6(S/B) |
| Dimension(L*W*H) | 4800mm*1200mm*1800mm | 4800mm*1200mm*1800mm |
| Quilting Width | 2450mm | 2450mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3" | 3"+1"/1.5"/2"/3" |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 228.6mm | 228.6mm |
| Thickness of quilting | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1000(r/min) | 100-1000(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 5.5KW | 5.5KW |
| Gross weight | 4600KG | 4600KG |

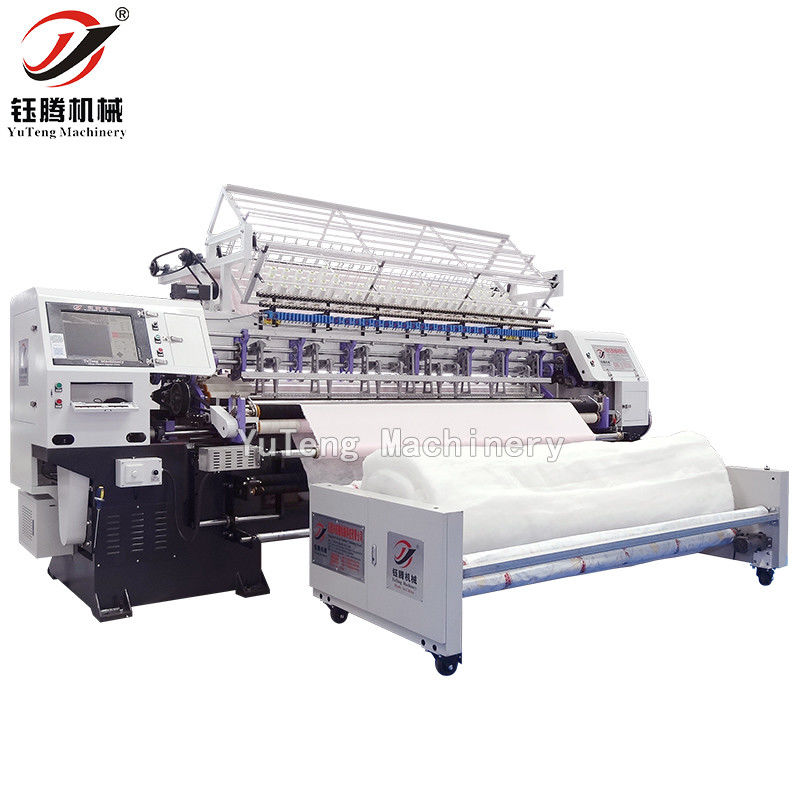

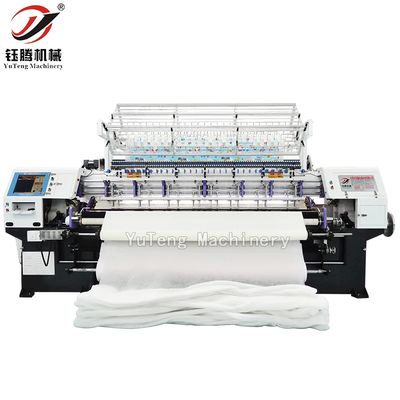

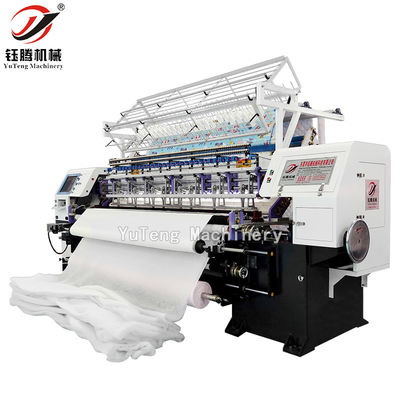

Machine Pictures:
Machine Details:
The stand of bottom cloth separate from moving saddles
The pattern produced is accurate and beautiful
Automatic thread-break detection unit
Available in multiple languages
High quality stainless steel shuttle holder
Service:
1.All parts are guaranteed one year for non-human-made damage
3.During production,the production pictures and videos are available any time
3.We provide details machine installation & user’s guide and maintenance manual
Do not hesitate to contact us - we will be happy to assist and advise you.
