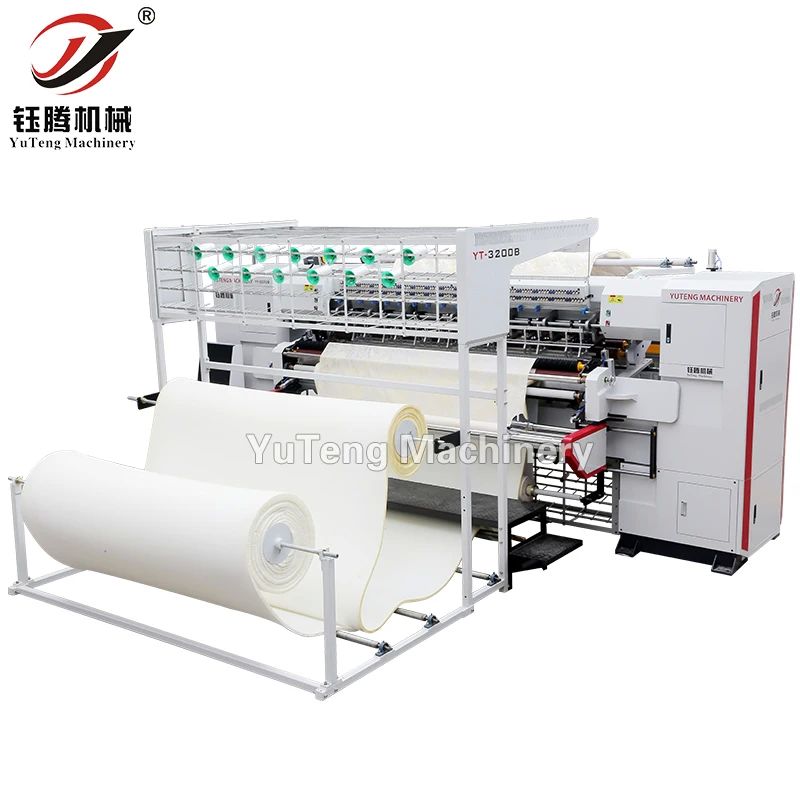

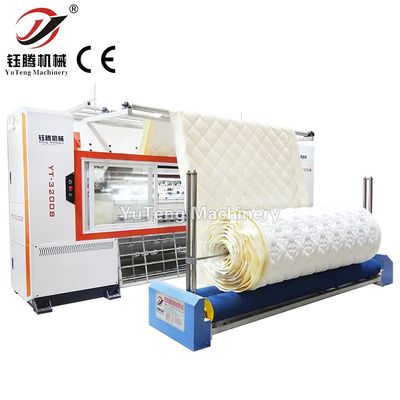

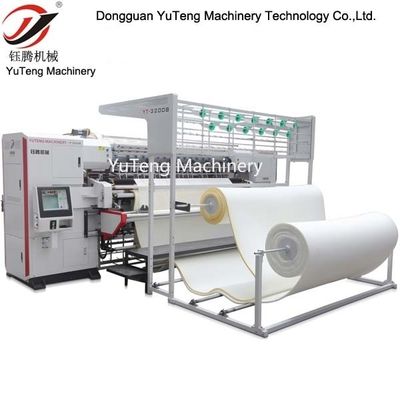

Factory Use Bedding Sewing Machine Chain Stitch Computerized Mattress Stitching Quilting Machine
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | YuTeng Brand |
| Certification: | CE |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | plastic film+paper shell |
| Payment Terms: | Accept T/T |
|
Detail Information |
|||
| Name: | Computer Quilting Machine | Applicable Industries: | Mattress Manufacturing Plant |
|---|---|---|---|
| Sewing Width: | 245CM | Operation Speed: | 100-1200RPM |
| Stitch Type: | Chain Stitch（Non-shuttle） | Stitch Length: | 2-12mm |
| Machine Weight: | 5500 KGS | Max Quilting Thickness: | 80MM |
| Needle Bar: | 3 | Needle Bar Space: | 5" And 6" |
| Highlight: | Chain Stitch Bedding Sewing Machine,Computerized Mattress Stitching Quilting Machine,Factory Use Bedding Sewing Machine |
||
Product Description
Computer Shuttleless Multi-Needle Quilting Machine
Product Description:
IIt offers high-speed, precise sewing without thread breakage, it is ideal for mass production of patterns on quilts, mattress panel,mattress covers,bedspreads,comforters,blankets,bedding,seat covers,decoration and more .
Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameters:
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 60-260(m/hour) |

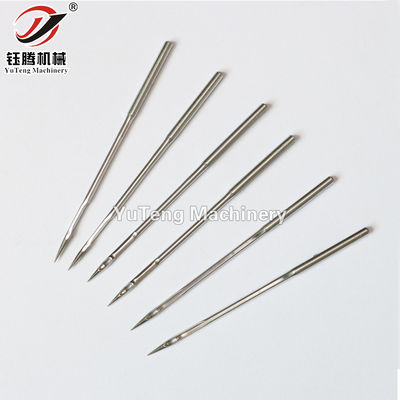

| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1200(r/min) |
| Voltage(AC) | 380V/220V ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
Applications:
Ideal for home textiles, bedding, upholstery, and mattress manufacturing industries.
Company Certificates:
Our Company Profile:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
FAQ:
1.Q:What is your minimum order quantity?
A:The minimum order quantity is 1 units.
2.Q:Do you offer customized packaging options?
A:Yes, we provide customized packaging upon request.
3.Q:What are the payment terms?
A:Payment terms are 30% deposit, 70% balance before shipment.
4.Q:Do you provide after-sales support?
A:Yes, we offer full after-sales service and support.
5.Q:Are there any warranties on the product?
A:Yes, we offer a one-year warranty on our products.
