2450mm Computerised Quilting Machine , High Speed Quilting Machine 8KW
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Yu Teng |
| Certification: | CE Certificate |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | film packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 1200r/m |
|---|---|---|---|
| Max Sewing Thickness: | 80mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V/220V/50HZ |
| Power: | 8KW | Dimension(L*W*H): | 5300*1600*2300mm |
| Weight: | 5500KG | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Quilting Width: | 2450mm |
| Needle Rows: | 3 | Space Between Needle Rows: | 3"+2",3"+3" |
| Space Between Needle: | 25.4mm | Speed Of Operation: | 60-230m/hour |
| Stitch Length: | 1-12mm | Port: | Shenzhen |
| Highlight: | 2450mm Computerised Quilting Machine,High Speed Computerised Quilting Machine,high speed quilting machine 8KW |
||
Product Description
High Speed Computerized Mattress Quilting Machine YT-3000A
Technical Parameters
| Model | YT-3000A |
| Dimension(L*W*H) | 5300*1600*2300 mm |
| Quilting width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2" ; 3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm |
| Quilting thickness | 80mm |
| Stitch length | 1-12mm |
| Production speed | 60-230 M/H |
| Model of needle | 21#,22#,23#,24# |
| Quilting speed |
1200R/Min. |
| Voltage | 380V/50HZ 220V/60HZ |
| Power | 8KW |
| Gross weight | 5300kg |
High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
The main features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Purpose: High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
is widely used for Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

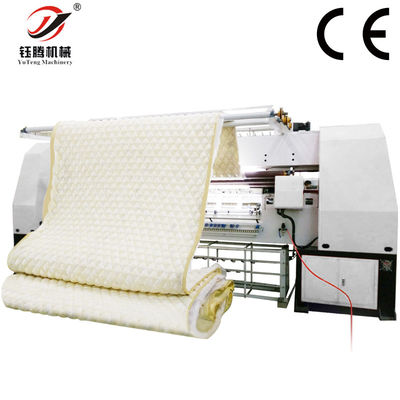

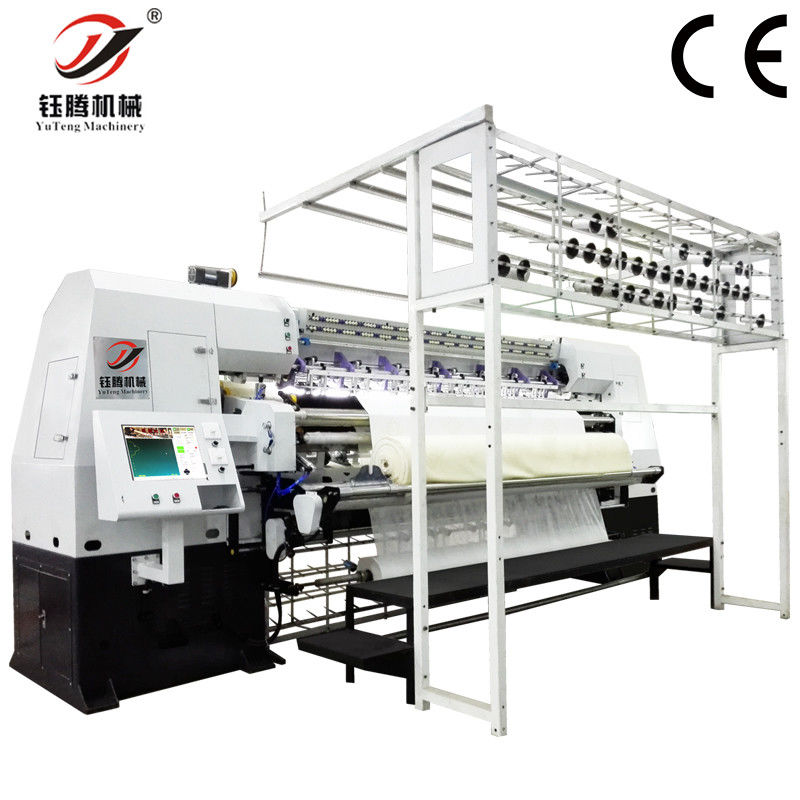

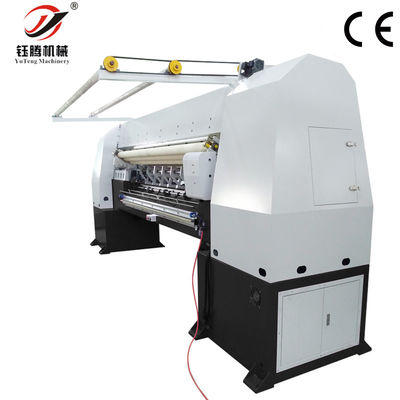

Picture of High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4. Warranty: One year.
5.After-sale services: If customer need,One engineer will arrange to customer factory for installation and training.
6.Customized Model are available to meet client's various needs.
Welcome to contact with us,for more information of quilting machine.
