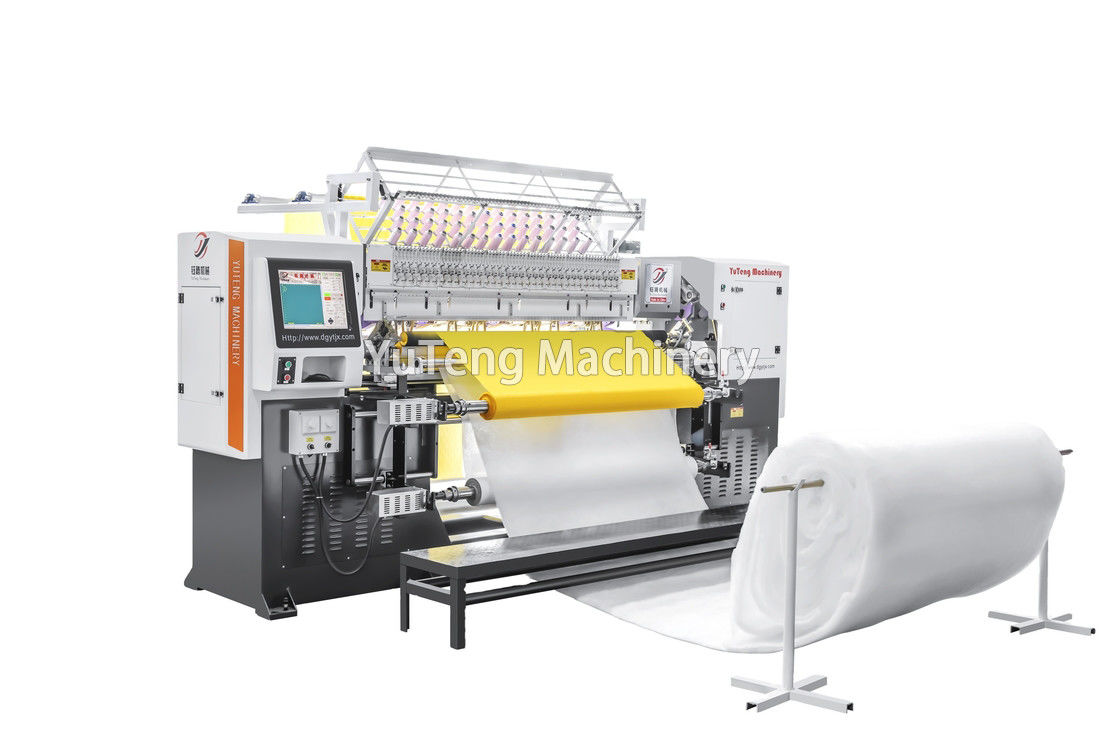

Computerized Industrial Double Row Rotary Hook Quilting Machine For Making Garments Leather And Vanity
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Model Number: | X80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | plastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Computerized Industrial Double Row Rotary Hook Quilting And Embroidery Machine | Dimension: | 4500*1400*2350mm |
|---|---|---|---|
| Quilting Width: | 2000mm | The Number Of Needle Rows: | 2 |
| Space Between Needle Rows: | 3” | Space Between Needle: | 67.5mm |
| Stitch Length: | 2-12mm | Quilting Speed: | 100-1000 Rpm |
| Total Power: | 4.5KW | ||
| Highlight: | Leather Rotary Hook Quilting Machine,Garments Rotary Hook Quilting Machine,Vanity computerized quilting and embroidery machine |
||
Product Description
High-speed computerized double-row quilting and embroidery machine
Product Description:
It is widely used for quilting high-quality garments,bedding covers,textile,leather,shoes,cap,bags,vanity,gloves,sleeping bag,seat cover and wall decoration etc.
Features:
•Quilting and embroidery is completed together.
• Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly with long life and good stability, easy drawing and useful.
• Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
• Can move an inch in front of the needle bar, and provide more combination of flowers form.
• Saddling rack, roller and spindle are drive by servo motor.
• The needle bar running adopt aluminum alloy needle bar frame structure, don't need to add extra lube, strong and durable.
• Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
• Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
• Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
• Infrared sensor makes the operation more secure
• Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running Super comfortable space for changing shuttle, easy to convey cloth.
Technical Parameters:
|
Model |
X80 |
|
Dimension(L*W*H) |
4500×1400×2350mm |
|
Quilting Width |
2000mm |
|
Needle rows |
2 |
|
Space between needle rows |
3" |
|
Space between needle |
67.5mm |
|
X-axis movement displacement |
152.4mm(可定制/Customizable) |
|
Stitch length |
2-12mm |
|
Model of needle |
12#-16# |
|
Quilting Speed(r/min) |
100-1000 |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
4.5KW |
|
Gross weight |
3400Kg |
Customized model are available to meet client's various needs
Our Company:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
Packing and Shipping:
The quilting machines are packed in elastic film or wooden case as required before shipping.
FAQ:
Voltage:Our voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
Payment terms: TT:30% in advance, 70% was paid off before shipment.
