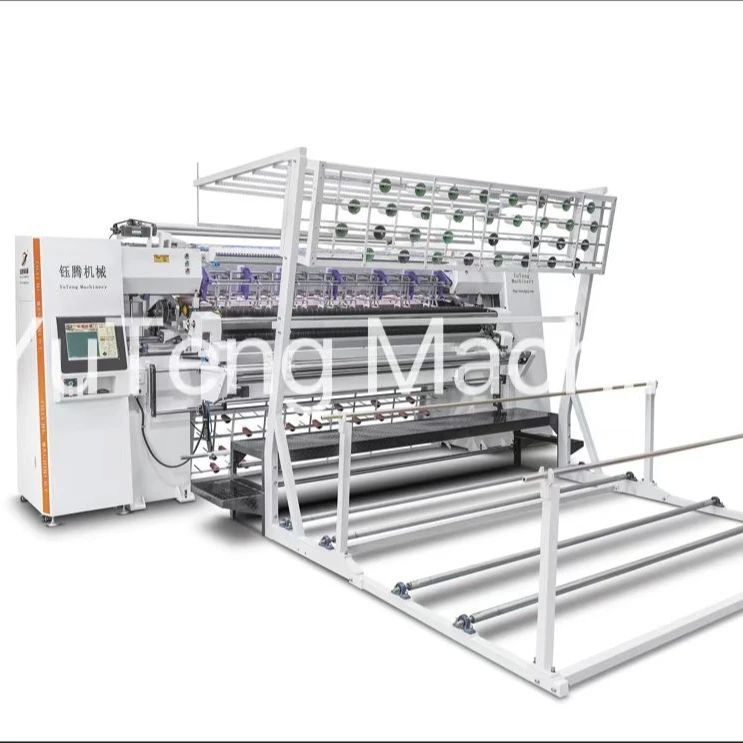

High Speed Computerized Non-shuttle Multi-needle Quilting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3500A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Payment Terms: | T/T |
| Supply Ability: | 300 Set/Year |
|
Detail Information |
|||
| Dimension(L*W*H): | 5200mm*1600mm*2300mm | Quilting Width: | 2450mm |
|---|---|---|---|
| Thickness Of Quilting: | ≤80mm | Quilting Speed: | 100-1400r/min |
| Production Speed: | 110-330m/m | Needle: | 21#，22#，23#，24# |
| Space Between Needle: | 1 Inch | Voltage: | 220V/380V |
| Power: | 8KW | Stitch: | 1-12 MM |
| Weight: | 5500KGS | ||
| Highlight: | Non-shuttle Quilting Machine,High Speed Quilting Machine,Multi-needle Quilting Machine |
||
Product Description
Computerized non-shuttle chain stitch multi needle mattress quilting machine
Product Description:

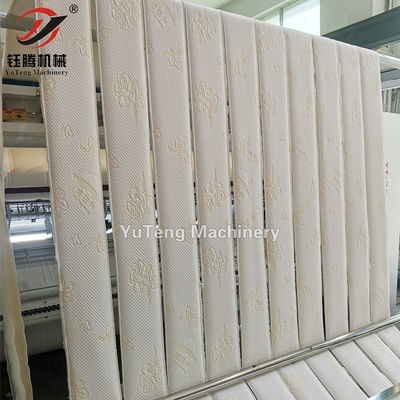

It is mainly used for quilting advanced mattress,bedding,blanket,carpet,cushion etc.
Special Function:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameters:
| Model | YT-3500A |
| Dimension(L*W*H) | 5200mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"/ 3"+3" |
| Space between needle | 25.4mm/12.7mm |
| X-axis movement displacement | 305mm(Customizable) |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 1400(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |

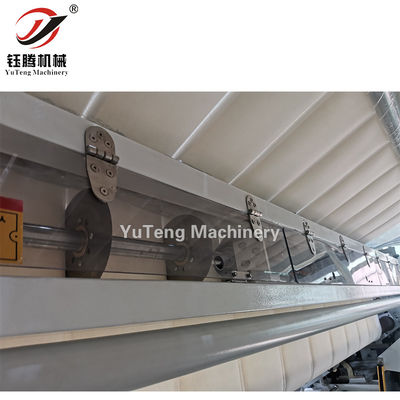

Product Detail:
Support:
* Inquiry and consulting support.
* View our Factory.
*warranty: 1 year
About us:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
