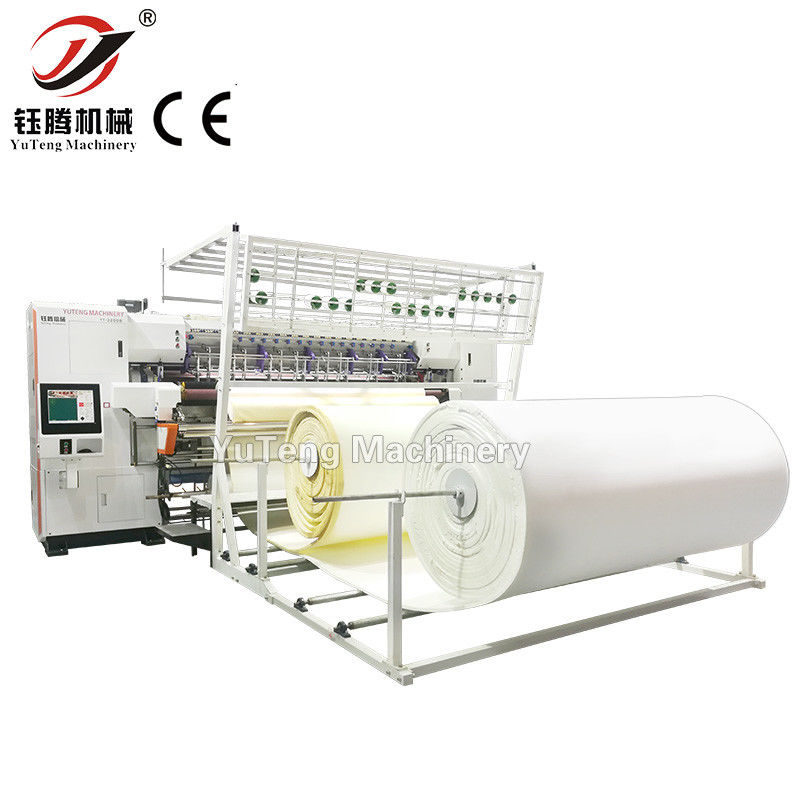

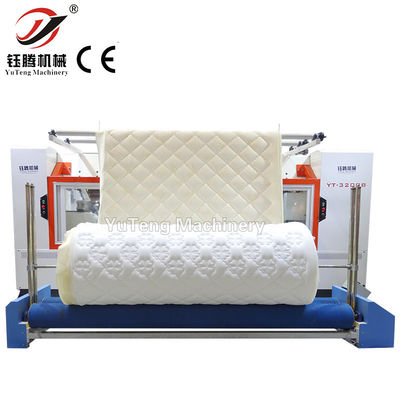

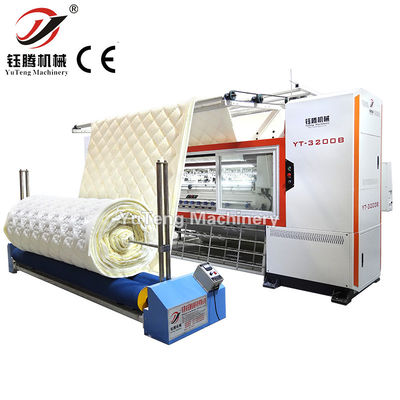

Computerized Automatic High Speed Shuttleless Multi Needle Industrial Quilting Machine
Product Details:
| Place of Origin: | China，Guangdong |
| Brand Name: | Yuteng brand |
| Certification: | CE Certificate |
| Model Number: | YT-3200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | PE Film &paper board packing |
| Payment Terms: | T/T |
| Supply Ability: | 300 Set/Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Mattress/ Home Textile Manufacturer | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty: | 1 Year |
| Dimension: | 5050*1600*2300mm | Machine Weight: | 5500KGS |
| Space Between Needle: | 25.4mm | Power: | 8KW |
| Quilting Speed: | 100-1200r/min | Port: | Shenzhen City，Guangdong |
| Voltage: | 220V/380V | ||
| Highlight: | Industrial Quilting Machine,High Speed Industrial Quilting Machine,Computerized Industrial Quilting Machine |
||
Product Description
Industrial stitching multi needle quilting machine for mattress making
Product Description:
It is used to quilt mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, bedding and more
Product Features:
1. Full thread break detection for top and bottom threads
2. 360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
11. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
Technical Parameters:
| Model | YT-3200B |
| Dimension(L*W*H) | 5050mm*1600mm*2300mm |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3"+2"/3"+3" |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 1-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1200(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500KG |
Samples:
Support and Services:
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
