Industrial 1000 Rpm Looper Multi Needle Mattress Quilting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT-3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | paper board& PE film |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Brand Name: | YuTeng |
|---|---|---|---|
| Dimension: | 5000*1600*2300mm | Thickness Of Quilting: | ≤8cm |
| Speed Of Operation: | 60-230（m/hour） | Quilting Width: | 96 Inch |
| Quilting Speed: | 100-1000m/m | Needle: | Multi-needle |
| Space Between Needles: | 2.54cm | ||
| Highlight: | Industrial Mattress Quilting Machine,1000 Rpm Mattress Quilting Machine,Multi Needle Mattress Quilting Machine |
||
Product Description

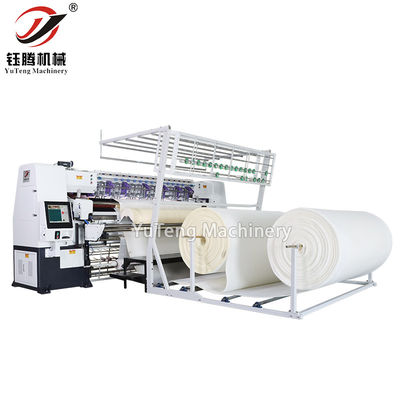

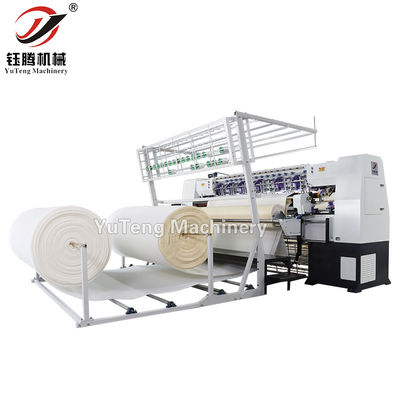

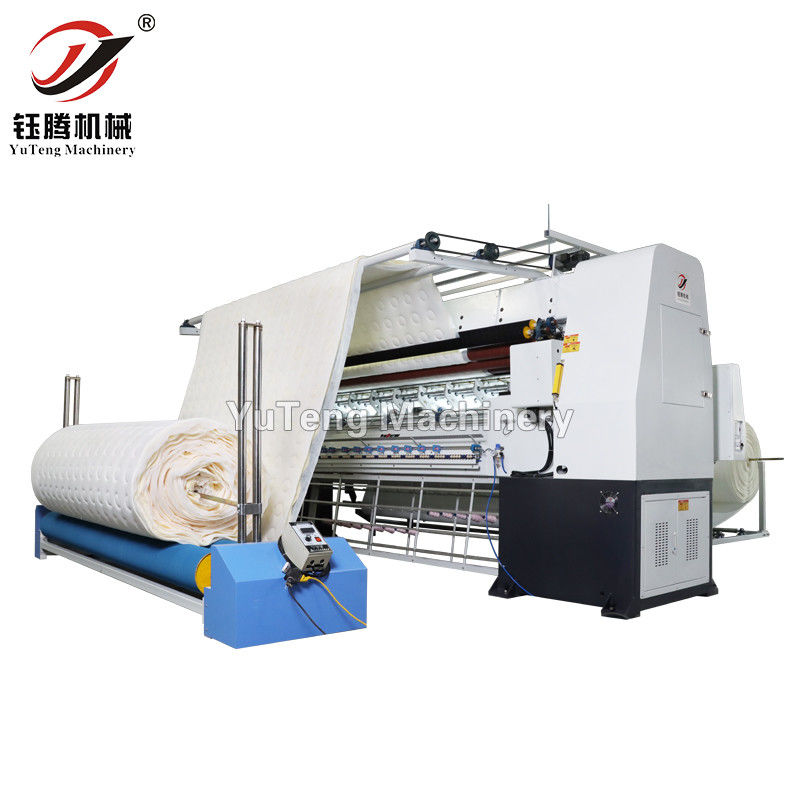

Computerized industrial multi needle mattress quilting machine:
High speed, classic style,speed can reach max.1000rpm
1.The machine is mainly used for quilting mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seat covers,decoration,and more.2.Multi-span and independent quilting with pattern compensation function.
3.Computer can be in store 1000 patterns with about 200 patterns already existing, and have pattern editing function.
Function:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Technical Parameters:
| Model | YT-3000A | Stitch length | 1-12mm |
| Dimension(L * W * H) | 5000*1600*2300mm | Production speed (m/h) | 60-230(m/hour) |
| Quilting width | 2450mm | Needle model | 21#,22#,23#,24# |
| Number of needle rows | 3 | Quilting speed | 100-1000(r/min) |
| Space between needle rows | 3"+2";3"+3" | Voltage (AC) | 380V/50Hz / 220V/60Hz |
| Space between needle | 25.4mm | Power | 8Kw |
| X-Trip | 305mm | Weight | 5200Kg |
| Quilting thickness | ≤80mm |
Can be customized according to customer requirements
Products:
Packing and Shipping:
All our machines are packed in PE film or wooden case as required before shipping
About our Company:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
