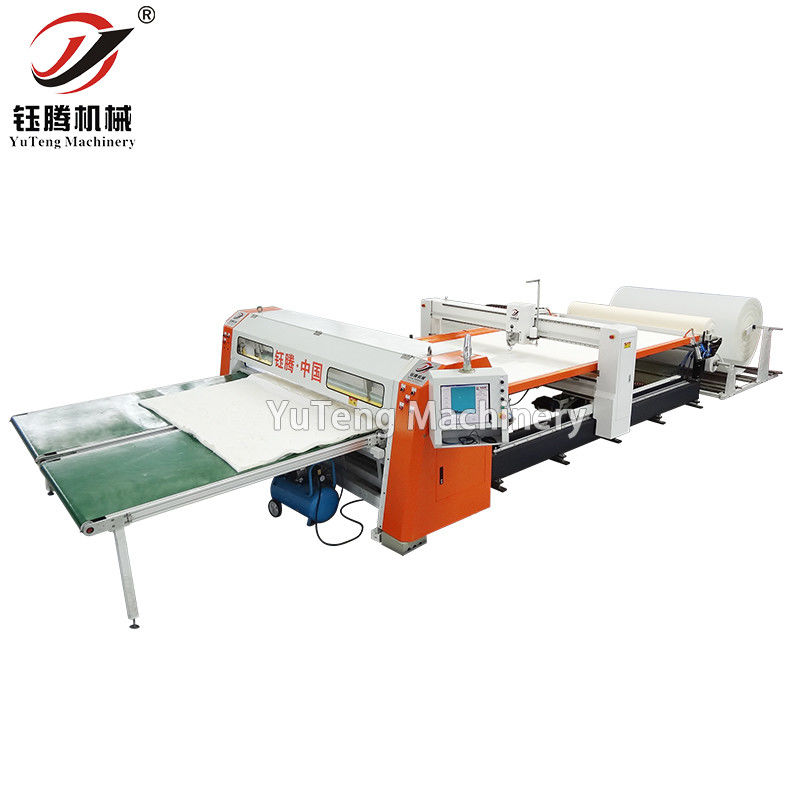

YTDZ-3000A Computerized Quilting Machine High Speed Single-Needle
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | YuTeng Machinery |
| Model Number: | YTDZ-3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | film packaging |
| Delivery Time: | 35 |
| Payment Terms: | T/T |
| Supply Ability: | 1+1+35 |
|
Detail Information |
|||
| Highlight: | 6mm Industrial Quilting Machine,single-needle computerized quilting machine,Computerized High Speed Quilting Machine |
||
|---|---|---|---|
Product Description
Application:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and etc.
Technical Parameter:
| Size(L*W*H) | 12500*4100*1800mm |
| Quilting width | 1200-2450mm |
| Quilting thickness | <80mm |
| Rotation speed | 3000r/min |
| Stitch length | 2-6mm |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3-Phase |
| Total power | 8KW |
| Weight | 3000KG |
Machine Features:

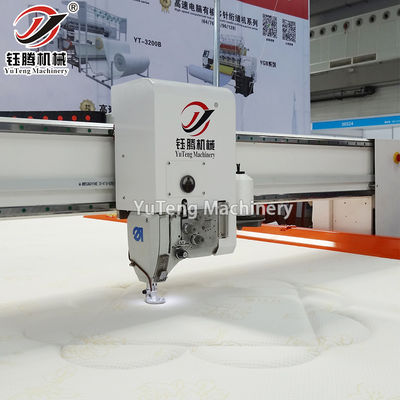

1, New Germany imported single-needle sewing head, stable quality, reliable performance, the maximum speed up to 3000RPM.
2.Automatic thread trimming, up thread-broken detection and pattern compensation,adjustable presser foot by different thickness.
3. High rigidity mobile frame design, high-precision linear guide structure, to ensure the synchronization stability between the needle and the rotary hook, solid and durable, easy maintenance.
4. Innovative rotary hook changing structure, more scientific use and easier operation; (patent structure).
5.This high speed computerized single-needle quilting machine adopted Panasonic servo motors ,high precision , small noise vibration, accurate and stable operation.
6.Using Windows Embedded Industrial Computer Control System,Patterns can be edited and modified in this operating system,Compatible with embroid or other
quilting system format.
7.Support for 360-degree independent quilting and rotating quilting,high pattern precision.
8. Automatic material feeding , automatic clamping and automatic cutting device improve the production efficiency of single needle quilting machine and reduce labor cost.
