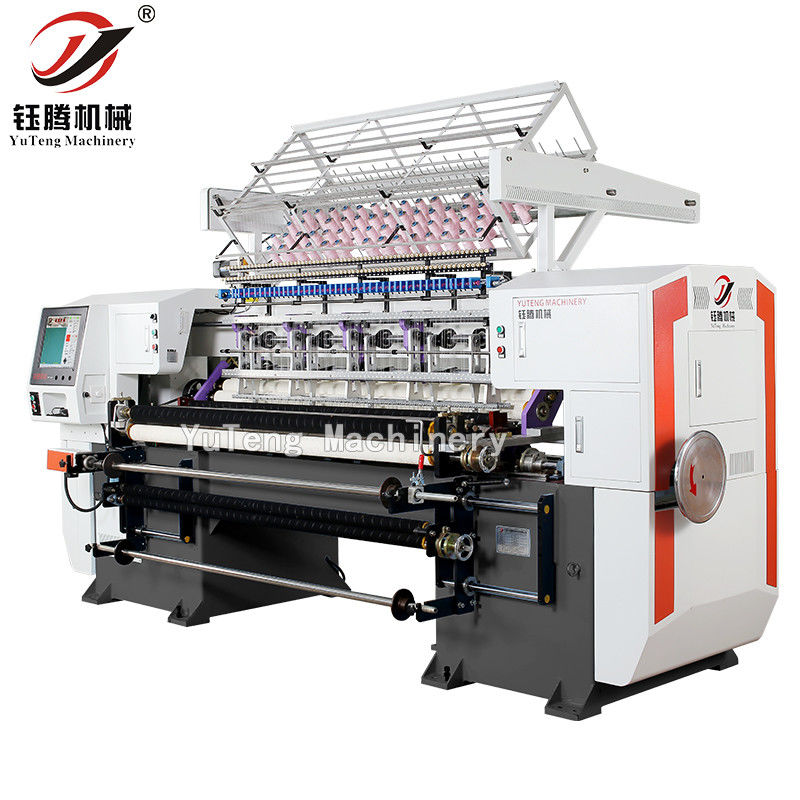

Multi Needle Lock Stitch Quilting Machine 800rpm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $23,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800rpm | Max Sewing Thickness: | 25mm |
| Number Of Head: | Single Head | Moving Style: | Frame Moved |
| Voltage: | 380V/220V | Power: | 5.5kw |
| Dimension(L*W*H): | 4900*1200*1800(mm) | Weight: | 4300 |
| Warranty: | 1 Year | Port: | Shenzhen/Guangzhou |
| Highlight: | Single Head Lock Stitch Quilting Machine,Lock Stitch Quilting Machine 800rpm,Multi Needle embroidery quilting machine |
||
Product Description
Lock Stitch Quilting Machine Computerized Quilting Embroidery Machine Multi Needle Quilting Machine
Quilting Patterns and Designs: Lock stitch quilting machines often come equipped with a wide variety of pre-programmed quilting patterns and designs. These patterns can include geometric shapes, floral motifs, stippling, waves, or custom designs. The machine's control panel or software interface allows users to select and program the desired quilting pattern, stitch length, and width to achieve the desired aesthetic effect.
Adjustable Stitch Length and Tension: A lock stitch quilting machine provides adjustable stitch length and tension settings. This allows users to customize the appearance and functionality of the quilting stitches. The stitch length determines the distance between adjacent stitches, while the tension ensures the stitches are neither too loose nor too tight. Adjustable settings provide flexibility to match the fabric type, thickness, and desired quilting effect.
Technical parameters :
|
Model |
YGC96-2-3 |
YGC96-3-5 |
YGC96-3-6 |
|
Dimension(L*W*H) |
4900mm*1200mm*1800mm |
4900mm*1200mm*1800mm |
4900mm*1200mm*1800mm |
|
Quilting Width |
2450mm |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3"(inch) |
3"+2"(inch) |
3"+3"(inch) |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
25mm |
25mm |
25mm |
|
Stitch length |
2-8mm |
2-8mm |
2-8mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(r/min) |
300-800(r/min) |
300-800(r/min) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ,3P |
380V/50HZ,220V/60HZ,3P |
380V/50HZ,220V/60HZ'3P |
|
Total power |
5.5KW |
5.5KW |
5.5KW |
|
Gross weight |
4500kg |
4500kg |
4500kg |
Product main features :
1,Computerized speed governing , max.800r/min.
2,Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3,Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4,Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Detailed Images :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

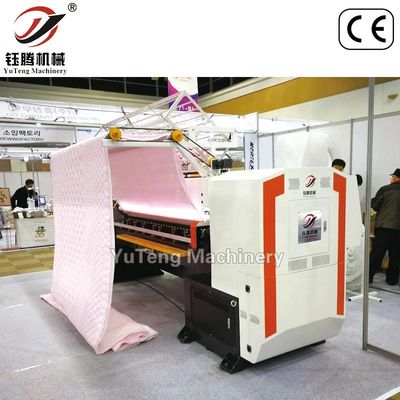

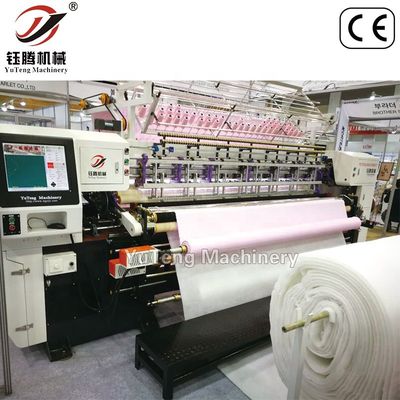

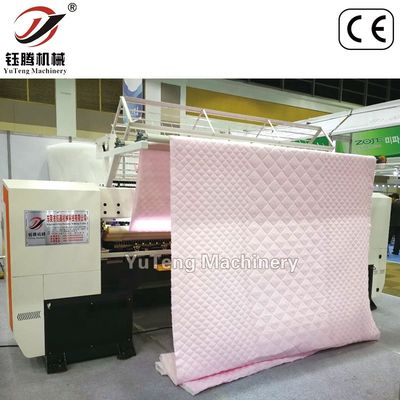

Quilting Machine Pictures :
Certificate :
Company picture :
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.Warranty: One year.
5.Overseas engineers can be sent to install machines and teach you how to use them.
6.We provide both Before-sale service and After-sale service.
