2540mm Lock Stitch Quilting Machine , Shuttleless Quilting Machine For Quilt Blanket
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE Certificate |
| Model Number: | YGB96 |
Payment & Shipping Terms:
| Price: | $10,000.00 - $60,000.00/sets |
|---|---|
| Packaging Details: | Packaging Details professional industrial manufacture of quilting machine for sale: <br>export standard packing <br>Generally speaking, the packing can be carried out with film and box, which can be packed according to the customer's requirement. |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800r/min |
|---|---|---|---|
| Max Sewing Thickness: | 80mm | Number Of Head: | Multi Needle |
| Moving Style: | Frame Moved | Voltage: | 380V 220V |
| Power: | 8KW | Dimension(L*W*H): | 4900mm*1600mm*2300mm |
| Weight: | 5500kg | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Speed Of Operation: | 60-230(m/hour) |
| Quilting Width(mm): | 2540mm | The Number Of Needle Rows: | 3 |
| Space Between Needle: | 25.4mm | X-axis Movement Displacement: | 304.8mm |
| Thickness Of Quilting: | ≤25mm | Stitch Length: | 2-6mm |
| Speed Of Operation(m/hour): | 20-120 | Model Of Needle: | 16#19# |
| Quilting Speed(r/min): | 300-800 | Port: | Shenzhen |
| Highlight: | Blanket Lock Stitch Quilting Machine,Quilt Lock Stitch Quilting Machine,2540mm Shuttleless Quilting Machine |
||
Product Description

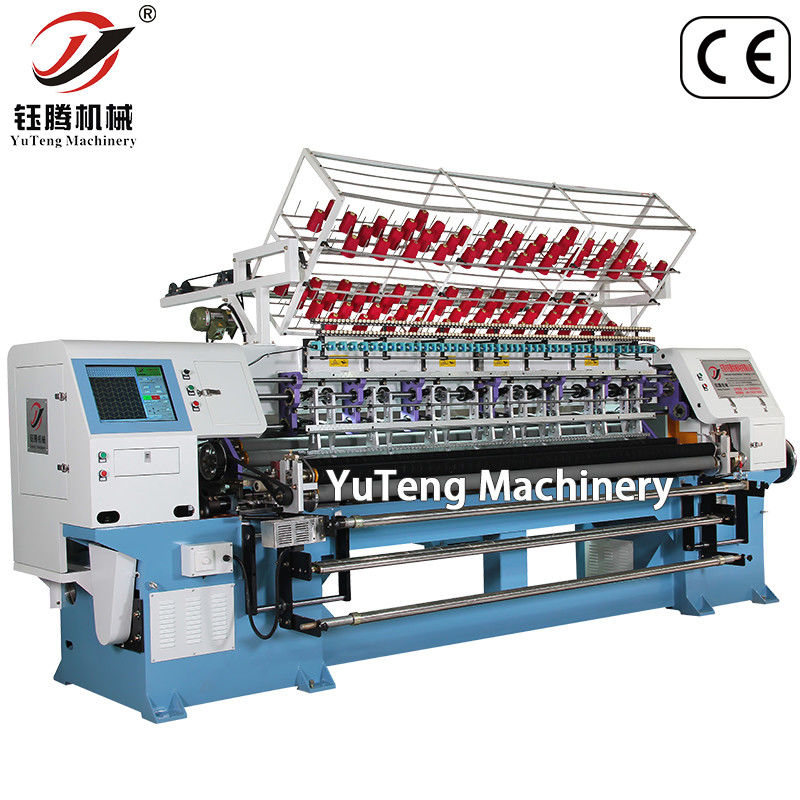

Lock Stitch Quilting Machine Multi Needle Shuttleless Quilting Machine For Quilt And Blanket
It is widely used for quilting high-quality garments , bedding covers , texile , leather , shoes , cap , bags , vanity , gloves , sleeping bag , seat cover and Wall decoration etc .
1) Computerized speed governing , max.800r/min.
2) Needle row driven by aluminum alloy needle bar frame structure . Oil free , sturdy and durable .
3) Saddles and Rollers driven by Servo driven equipment , Spindle adopts frequency conversion control .
4) Saddles using quilting machine with high rigidity design . The stand of fabric separate from saddles , effectively reduce the operating load of motor .
5) Dual clutch device , to solve the synchronization problem of rollers in front and back .
6) Using high-precision and high rigidity imported screw mandrel .
7) 360 degree free quilting come with unlimited Multi-span quilting independent patterns .
8) Automatic thread -break detection unit .
9) Infrared sensor make sure more safety operation .
10) The machine runs smoothly , low noise , high precision , low thread-break rate and easy to operate .
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warrany: One year.
6.Customized Model are available to meet client's various needs.
|
Model
|
96series
|
Stitch length
|
2-6mm
|
|
Dimension(L*W*H)(mm)
|
4900*1200*1800
|
Speed of operation(m/hour)
|
20-120
|
|
Quilting Width(mm)
|
2540mm
|
Model of needle
|
16#19#
|
|
The number of
needle rows
|
2/3
|
Quilting Speed(r/min)
|
300-800
|
|
Space between needle
|
25.4mm
|
Voltage(AC)
|
380V 220V
|
|
X-axis movement displacement
|
304.8mm
|
Total power
|
5.5kw
|
|
Thickness of quilting
|
≤25mm
|
Grossweight
|
4500kg
|
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
