quilting machine reach 1000r/min YGB76/96 series
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $10,000.00 - $50,000.00/sets |
|---|---|
| Packaging Details: | export packing |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max Sewing Speed: | 800 R/min |
|---|---|---|---|
| Max Sewing Thickness: | 25 Mm | Number Of Head: | Multi Needles |
| Moving Style: | Frame Moved | Voltage: | 220V,380V |
| Power: | 4KW | Dimension(L*W*H): | 4900*1100*1800 Mm |
| Weight: | 4500 Kg | Warranty: | 1 Year |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Number Of Needle Bar: | 2 |
| Shuttle Model: | #7,#10 | Port: | Shenzhen |
| Highlight: | 1000r/min quilting machine,YGB76/96 series quilting machine |
||
Product Description

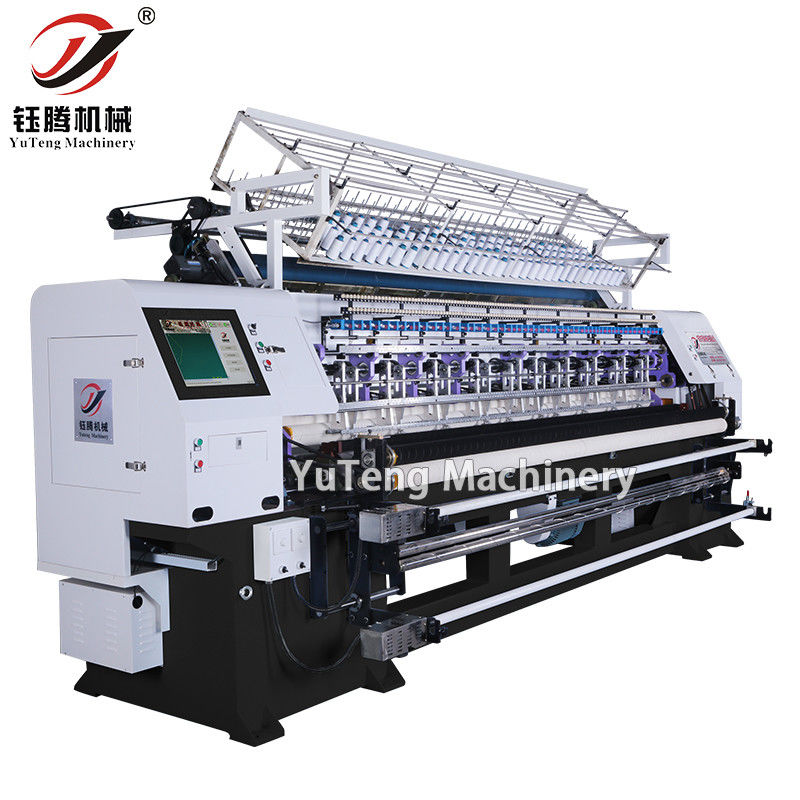

YuTeng quilting machine reach 1000r/min YGB76/96 series
Technical Parameters
| Model | YGB76-2-3 | YGB76-3-6 | YGB96-2-3 | YGB96-3-6 |
| Size(L*W*H)(mm) | 4000*1100*1800 | 4000*1100*1800 | 4900*1100*1800 | 4900*1100*1800 |
| quilting width | 1930mm | 1930mm | 2450mm | 2450mm |
| quantity of needle bar | 2 | 3 | 2 | 3 |
| space between needle bar | 76.2mm | 76.2mm,152.4mm | 76.2mm | 76.2mm,152.4mm |
| space between needle | 25.4mm | 25.4mm | 25.4mm | 304.8mm |
| X-axis movement | 254mm | 304.8mm | 254mm | 304.8mm |
| thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
| speed of operation(m/hour) | 20-120 | 20-120 | 20-120 | 20-120 |
| model of needle | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # | 16 #, 19 # |
| stitch length | 2-6mm | 2-6mm | 2-6mm | 2-6mm |
| quilting speed(r/min) | 300-800 | 300-800 | 300-800 | 300-800 |
| Voltage | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ | 380V/220V/50HZ |
| Total power | 3.5Kw | 3.5Kw | 4Kw | 4Kw |
| gross weight | 3500Kg | 3500Kg | 4500Kg | 4500Kg |
The main features:
1. Adjusted speed by computer and the speed can reach 800r/min.
2. The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4.Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7.360° random quilting and limitless multi-span and independent quilting.
8.Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10.Stable operation, low noise, high precision, few break line, easy operating.
11.Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).
Purpose: It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Quilting machine and sample show
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
6.Customized Model are available to meet client's various needs.
Welcome to contact with us,for more information of quilting machine.
