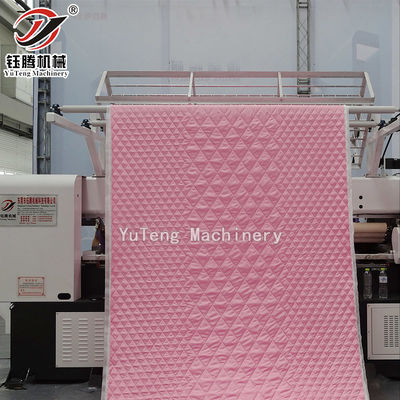

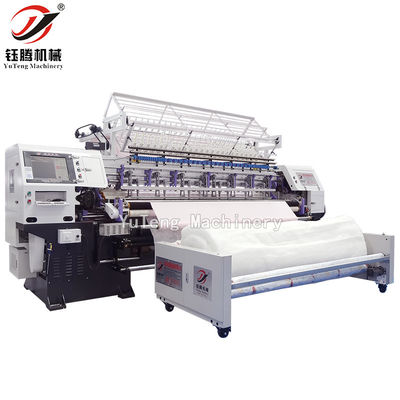

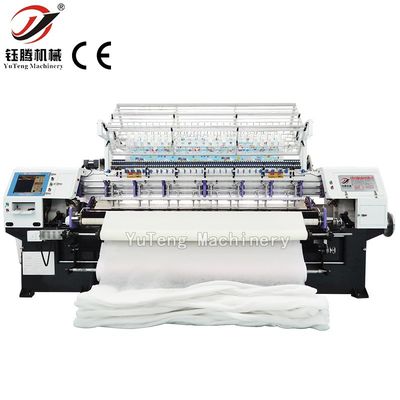

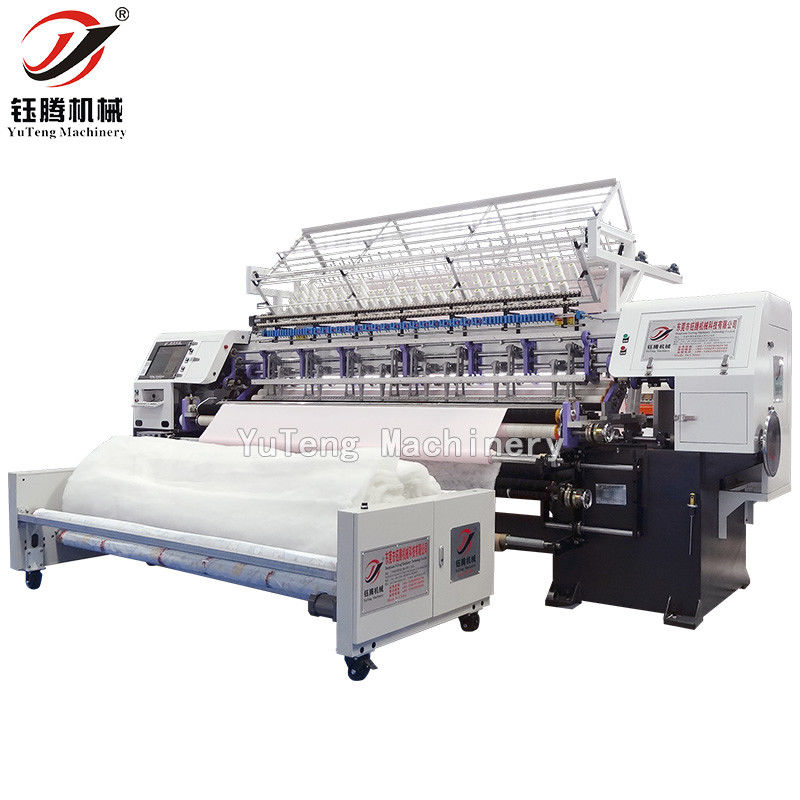

Lock Stitch Multi Needle Quilting Machine For Comforter Bed Cover Making Machine Industrial Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Film packaging |
| Supply Ability: | 360 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 5.5KW |
| Dimension(L*W*H): | 4900*1200*1800(mm) | Weight: | 4300kg |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Viet Nam, South Korea |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Industrial Lock Stitch Quilting Machine,Comforter Lock Stitch Quilting Machine |
||
Product Description
Lock Stitch Multi Needle Quilting Machine For Comforter Bed Cover Making Machine Industrial Quilting Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5 |
YGB96-3-6 |
|
Dimension(L*W*H) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" |
3"+2" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Shuttle model |
7 or 10 |
7 or 10 |
7 or 10 |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
5.5KW |
5.5KW |
5.5KW |
|
Gross weight |
4200kg |
4200kg |
4200kg |
Machine details :
Purpose :
The lock stitch multi-needle quilting machine described in the provided URL is primarily designed for industrial applications in the production of comforters and bed covers. It is widely used in factories and showrooms, catering to various industries such as textiles, garments, leather goods, shoes, caps, bags, and more. This versatile machine is suitable for quilting high-quality garments, bedding covers, textiles, leather, shoes, caps, bags, vanity items, gloves, sleeping bags, seat covers, and wall decorations. Its application extends to any product that requires quilting for enhanced aesthetics and functionality. With its advanced features and capabilities, this quilting machine provides precise and efficient quilting for a wide range of materials, offering excellent versatility and productivity in industrial settings.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
