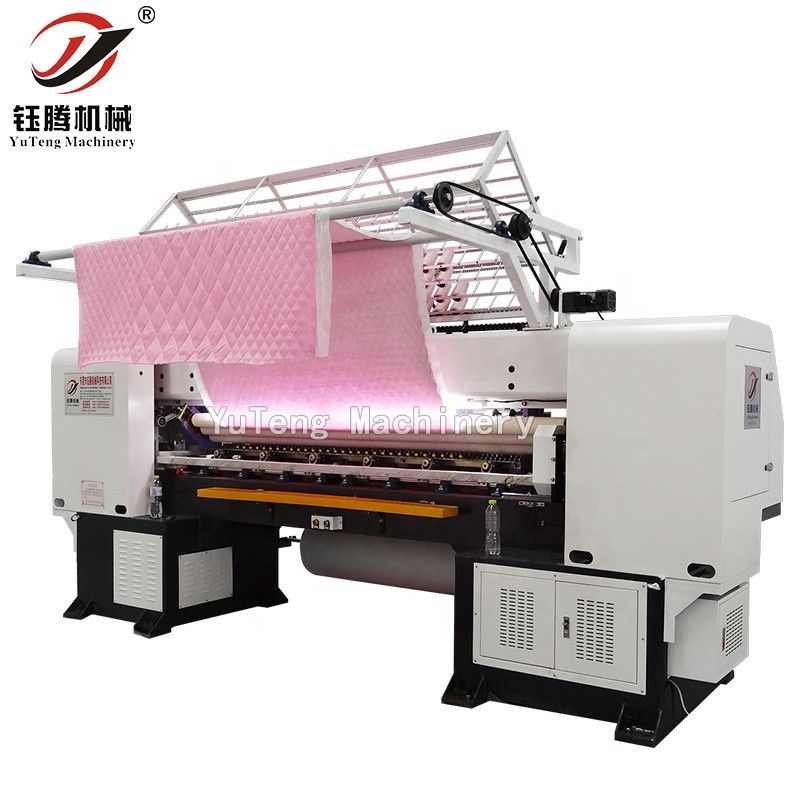

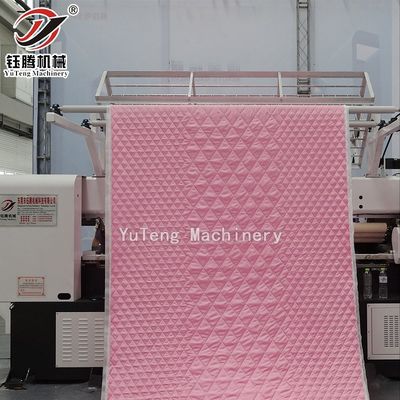

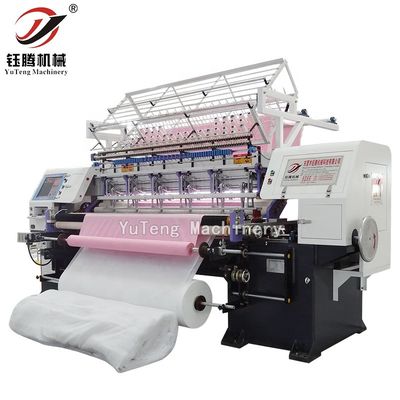

Shuttle Bobbin Quilting Machine,Computerized Multi Needle Quilting Machine For Garment Fabric Quilting Machines
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machine |
Payment & Shipping Terms:
| Price: | $10,000.00 - $30,000.00/sets |
|---|---|
| Packaging Details: | SEAWORTHY PACKING |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Weight (KG): | 3500 |
|---|---|---|---|
| Showroom Location: | Viet Nam, South Korea | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | SHENZHEN/GUANGZHOU, CHINA | ||
| Highlight: | Shuttle Bobbin Quilting Machine,Garment Fabric Quilting Machine |
||
Product Description
Shuttle Bobbin Quilting Machine,Computerized Multi Needle Quilting Machine For Garment Fabric Quilting Machines
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
11,A luxury lock stitch quilting machine incorporates advanced technology to ensure exceptional stitch quality and accuracy. It may feature computerized controls and a high-resolution touchscreen interface that allows for easy operation and customization of quilting patterns. The machine may also utilize state-of-the-art sensors and motors to achieve precise stitch length and tension.
Technical parameters :
|
Model |
YGB76-2-3 |
YGB76-3-5 |
|
Dimension(L*W*H) |
4300*1200*1800(mm) |
4300*1200*1800(mm) |
|
Quilting Width |
2000mm |
2000mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+2" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
25mm |
25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(r/min) |
300-800(r/min) |
|
Voltage(AC) |
380V/50HZ,220V/60HZ |
380V/50HZ,220V/60HZ |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3800kg |
3800kg |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
