Computerize Multi Needles Sewing Machine For Jacket Bed Sheets Machine Lock Stitch Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Export packaging |
| Supply Ability: | 360 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1000 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Dimension(L*W*H): | 3800*1200*1800(mm) | Weight: | 3200 |
| Warranty: | 1 Year, 1 Year | Port: | ShenZhen /GuangZhou |
| Highlight: | Jacket Lock Stitch Quilting Machine,Computerize Lock Stitch Quilting Machine,Lock Stitch Quilting Machine |
||
Product Description
Computerize Multi Needles Sewing Machine For Jacket Bed Sheets Machine Lock Stitch Quilting Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB64-2-3 |
YGB64-3-6 |
|
Dimension(L*W*H) |
3800mm*1200mm*1800mm |
3800mm*1200mm*1800mm |
|
Quilting Width |
1650mm |
1650mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" inch |
3"+3" inch |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Shuttle |
7# or 10# |
7# or 10# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3200kg |
3200kg |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Advantages:
High-Speed Quilting: With a maximum sewing speed of 800 RPM, this machine enables fast and efficient quilting, helping you meet production demands and deadlines.
Versatility: The multi-needle design and adjustable quilting width make this machine suitable for a wide range of quilting applications. It can handle various materials, including garments, bedding covers, textiles, leather, shoes, and more.
Precision and Quality: The machine ensures precise stitch formation and consistent quilting results. It allows for different stitch lengths and offers high accuracy, resulting in high-quality finished products.
After-Sales Service: We provide a one-year warranty for the machine, and our dedicated after-sales service team is available to assist you with any technical support or maintenance needs. We also offer the option of sending overseas engineers to install the machine and provide training.
Manufacture Factory: We have our own manufacturing facility, which ensures strict quality control and timely production. Our experienced sales teams and engineers are knowledgeable about the product and can provide expert guidance and support.

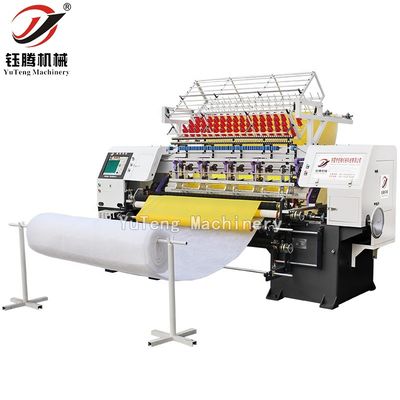

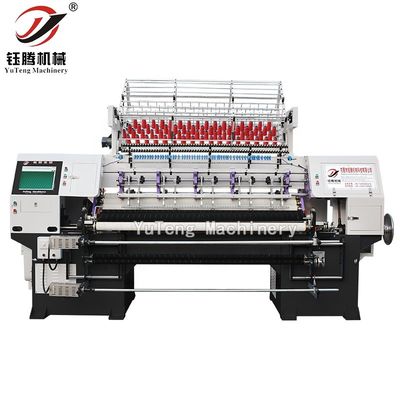

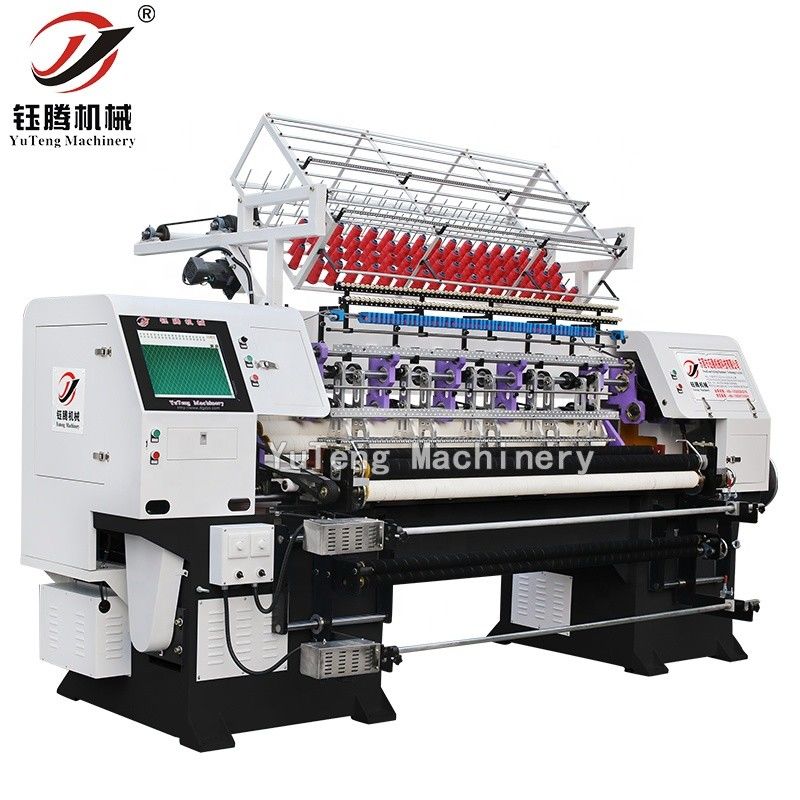

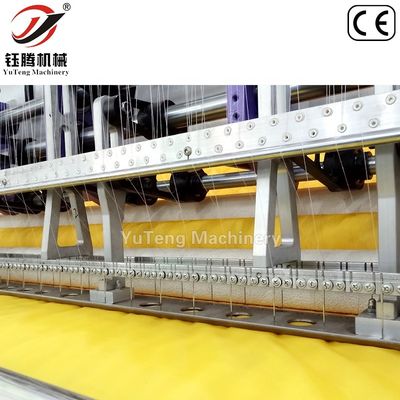

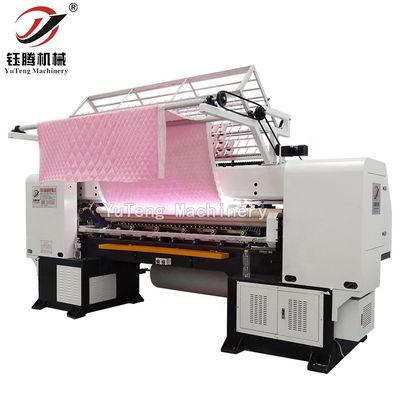

Quilting Machine Pictures :
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
