High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $32,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 350 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Dimension(L*W*H): | 4300*1200*1800(mm) | Weight: | 3800kg |
| Warranty: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Port: | ShenZhen /GuangZhou | ||
| Highlight: | High Speed Shuttle Quilting Machine,Coat Clothe Shuttle Quilting Machine,Multi Needle Shuttle Quilting Machine |
||
Product Description

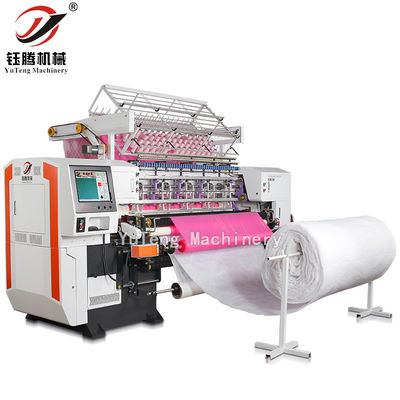

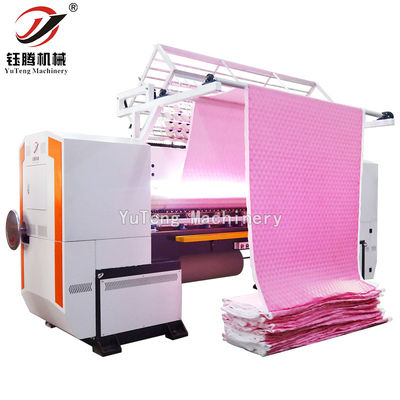

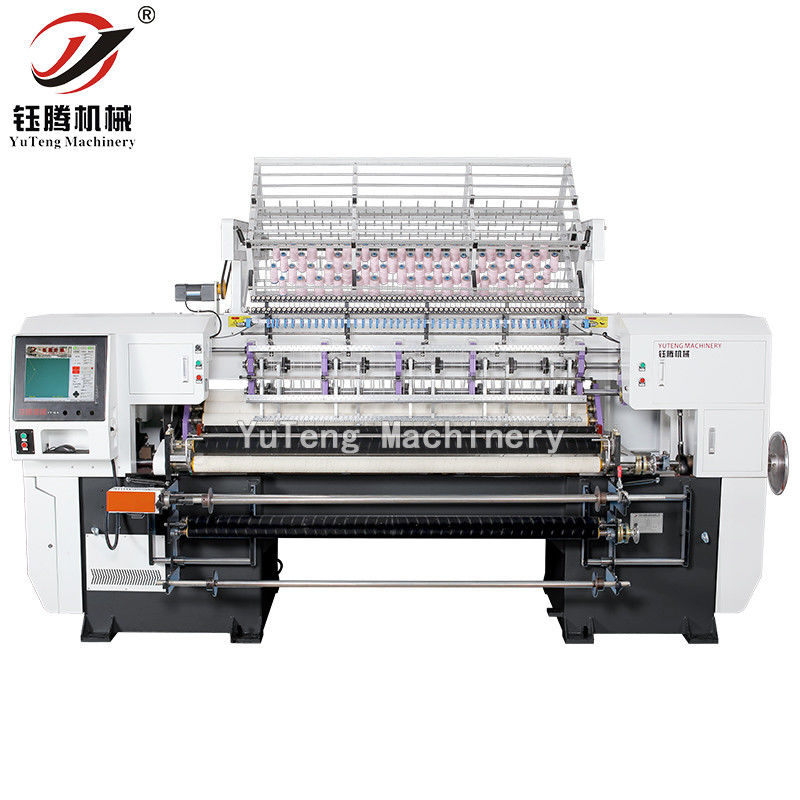

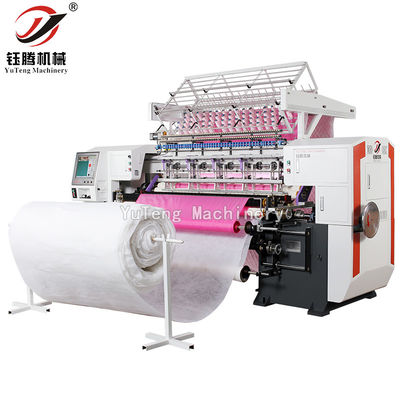

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine
Technical parameters :
|
Model |
YGC76-2-3 |
YGC76-3-5 |
|
Dimension(L*W*H) |
4300mm*1200mm*1800mm |
4300mm*1200mm*1800mm |
|
Quilting Width |
2000mm |
2000mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+2" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
25mm |
25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(r/min) |
300-800(r/min) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
3800kg |
3800kg |
Product main features :
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Company information:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
