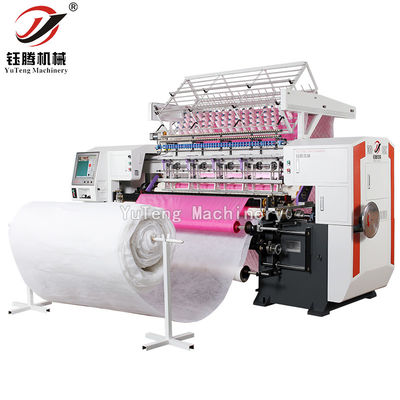

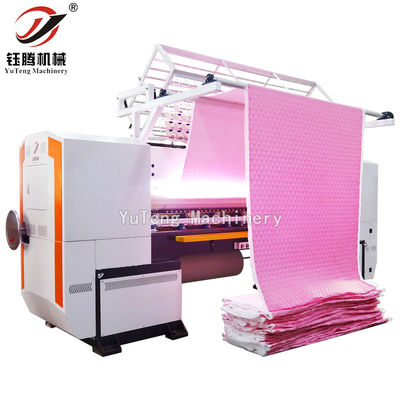

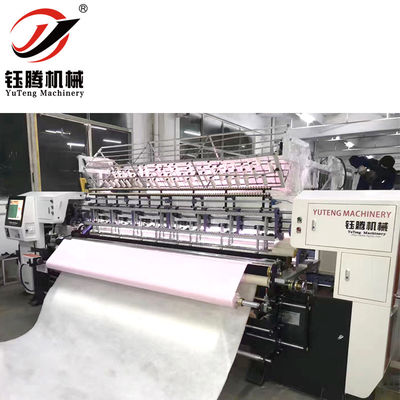

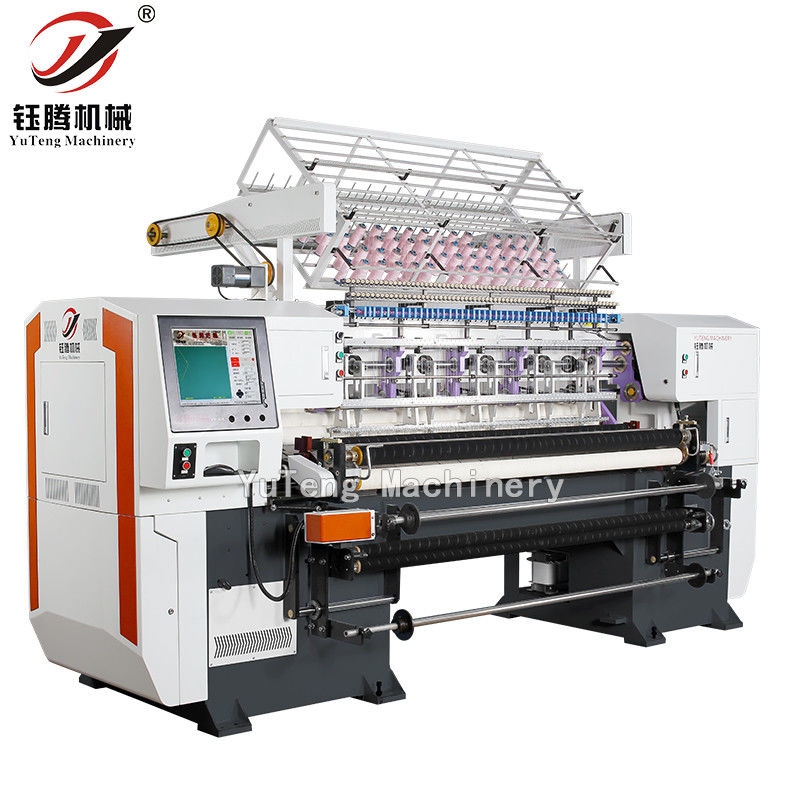

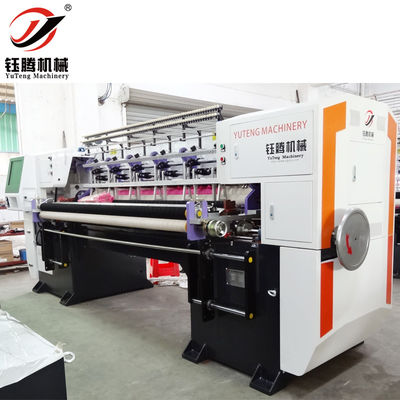

Computerized Multi-needle Quilting Machine With High Efficiency
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $35,000.00/sets |
|---|---|
| Packaging Details: | Export packaging |
| Supply Ability: | 350 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1000 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Dimension(L*W*H): | 3800*1200*1800(mm) | Weight: | 3200kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Shuttle Model: | 7 Or 10 | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | Port: | ShenZhen /GuangZhou |
| Highlight: | High Efficiency Quilting Machine |
||
Product Description
High-speed computerized lock stitch multi-needle quilting machine
1. Computerized speed governing , max. 800 RPM.
2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
6. Using high-precision and high rigidity Imported screw mandrel.
7. 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8. Automatic thread-break detection unit.
9. Infrared sensor make sure more safety operation.
10. The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
| Model | YGC64-2-3 | YGC76-2-3 | GC96-2-3 | |
| Dimension(L*W*H) | 3800*1320*1800(mm) | 4300*1320*1800(mm) | 4900*1320*1800(mm) | |
| Quilting Width |
|
2000mm | 2450 mm | |
| Needle rows | 2 | 2 | 2 | |
| Space between needlerows | 76.2mm | 76.2mm | 76.2mm | |
| Space between needle | 25.4mm | 25.4mm | 25.4mm | |
| X-axis movementdisplacement | 203.2mm | 203.2mm | 203.2mm | |
| Thickness of quilting | ≤ 25mm | ≤ 25mm | ≤ 25mm | |
| Stitch length | 2-8mm | 2-8mm | 2-8mm | |
| Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) | 20-120(m/hour) | |
| Model of needle | 16# 19# | 16# 19# | 16# 19# | |
| Shuttle model | 7#/10# | 7#/10# | 7#/10# | |
| Quilting Speed(r/min) | 300-800RPM | 300-800RPM | 300-800RPM | |
| Voltage(AC) | 380V/50HZ
220V/60HZ
|
380V/50HZ
220V/60HZ
|
380V/50HZ
220V/60HZ
|
|
| Total power | 3.5KW | 3.5KW | 5.5KW | |
| Gross weight | 3200KG | 3800KG |
|
YGC76
New aluminum alloy needle bar frame structure, Oil free, sturdy and durable, Can avoid lubrication and dirty material effectively
The stand of bottom cloth separate from moving saddles
Self-developed "YuTeng Quilting System", also supports quilting embroidering mainstream DST format file

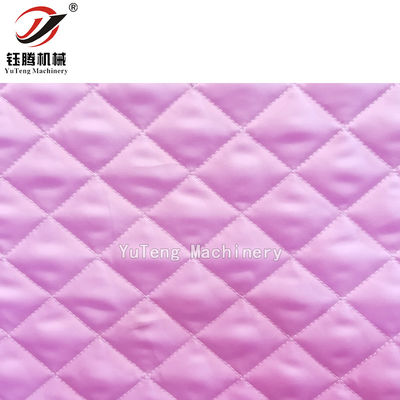

High-speed computerized multi-needle shuttle quilting machine,Is widely used for quilting high-quality garments, bedding covers, textile,shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
