Computerized Quilting Embroidery Machine Bed Cover Making Machine Multi Needle Shuttle Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $35,000.00/sets |
|---|---|
| Packaging Details: | Film packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 1000 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 4.5KW |
| Dimension(L*W*H): | 4800*1200*1800(mm) | Weight: | 4200kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Viet Nam, South Korea |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Bed Cover Making Machine,Computerized Quilting Embroidery Machine |
||
Product Description
Computerized Quilting Embroidery Machine Bed Cover Making Machine Multi Needle Shuttle Quilting Machine
1,Computerized speed governing , max.1000r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
11,These machines offer a wide range of quilting capabilities, allowing for creativity and versatility in quilting designs. They can handle various types of quilting patterns, such as stippling, meandering, or intricate custom designs. The machine may provide a large selection of pre-programmed patterns or allow for the creation and storage of custom patterns.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5/6 |
|
Dimension(L*W*H) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+2" or 3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
5.5KW |
5.5KW |
|
Gross weight |
4200kg |
4200kg |
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

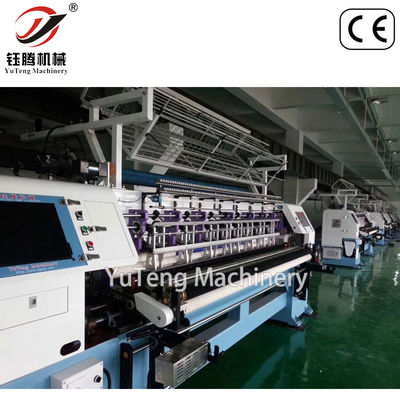

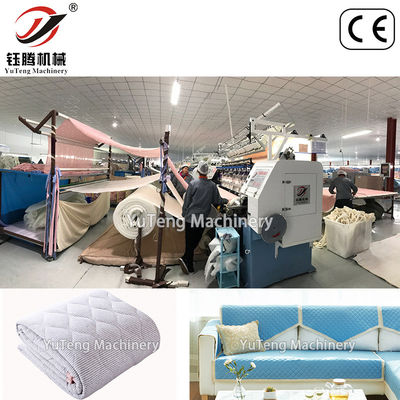

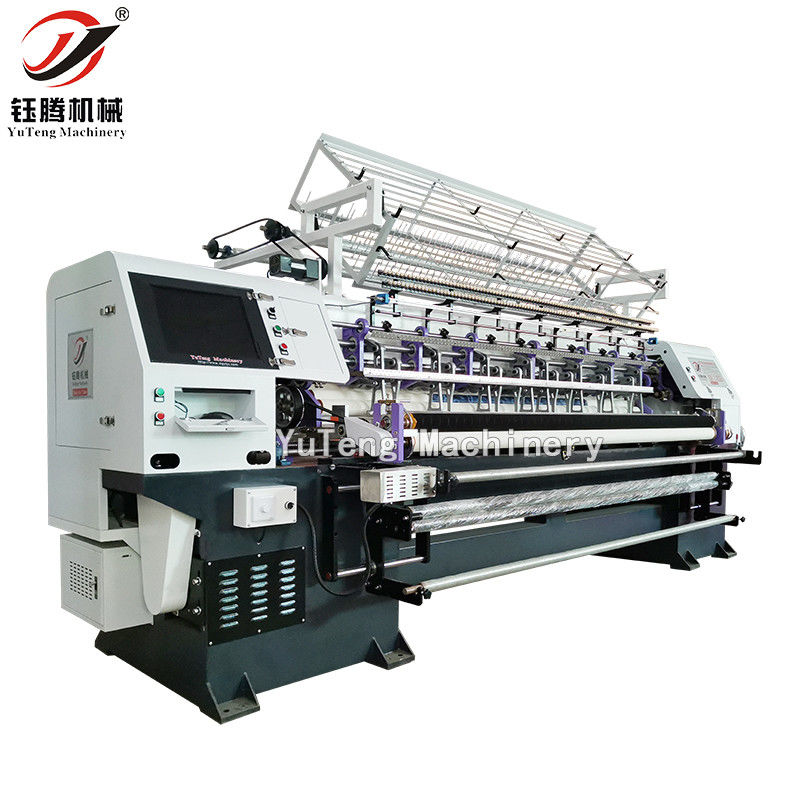

Quilting Machine Pictures :
Certificate :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
