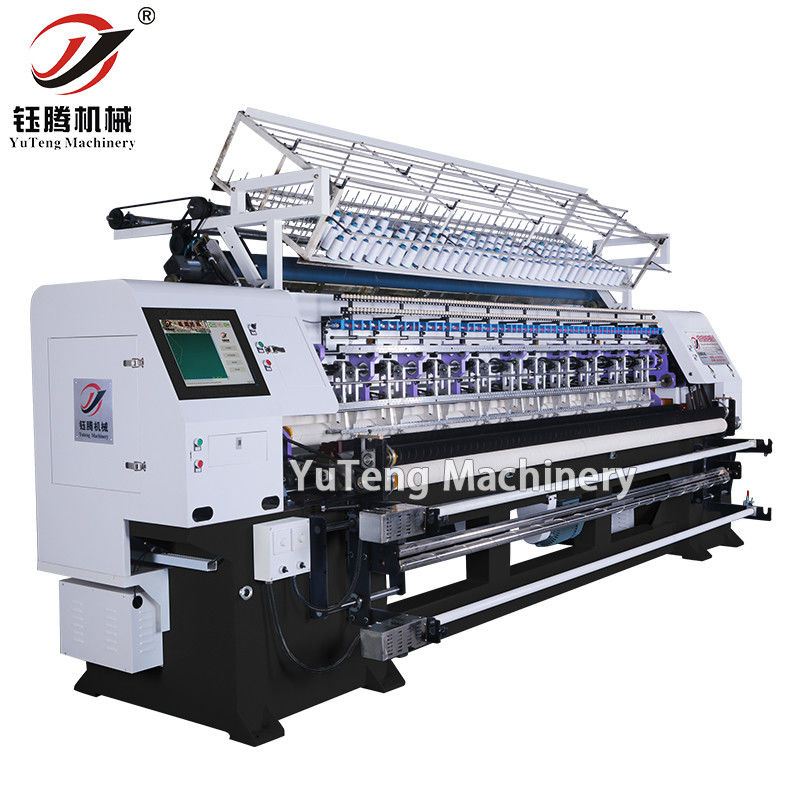

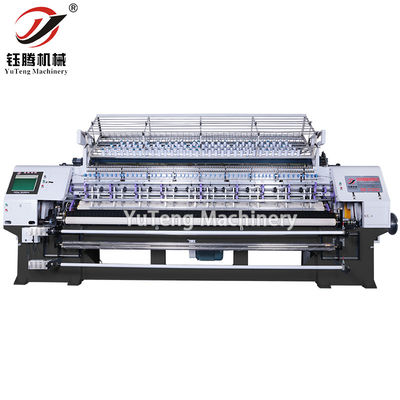

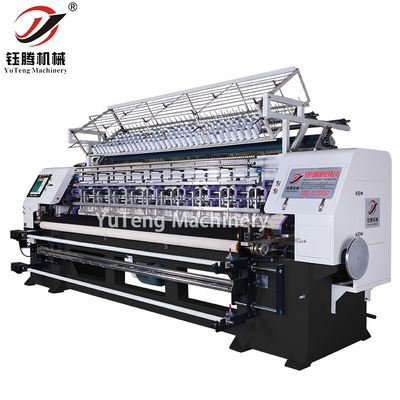

Computerized Multi Needles Machine For Bed Covers Mattress Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Film packaging |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 RPM | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 7.5kw |
| Dimension(L*W*H): | 5700*1200*1800(mm) | Weight: | 5000 |
| Warranty: | 1 Year | Port: | Shenzhen/Guangzhou |
| Highlight: | Mattress Quilting Machine,Bed Covers Quilting Machine,Computerized Multi Needles Quilting Machine |
||
Product Description
Computerized Multi Needles Machine For Bed Covers Mattress Quilting Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB128-2-3 |
YGB128-3-6 |
|
Dimension(L*W*H) |
5700*1200*1800(mm) |
5700*1200*1800(mm) |
|
Quilting Width |
3300mm |
3300mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Shuttle model |
7 or 10 |
7 or 10 |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
7.5KW |
7.5KW |
|
Gross weight |
5000kg |
5000kg |
Machine details :
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Certificate :
Company pictures :
Our service :
- Overseas engineers can be sent to install machines and teach you how to use them.
- We provide quality Before-sales service and after-sales service.
- We have our own manufacture factory and sales teams and engineers.
- Visit our Factory.
- Can provide quilted fabric samples.
- We provide a one-year warranty for all our products. This ensures that any manufacturing defects or malfunctions within the specified timeframe will be repaired or replaced at no additional cost to you.
