Computerized Multi Needle Lock Stitch Quilting Machine For Blanket
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machine |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $35,000.00/sets |
|---|---|
| Packaging Details: | Film packaging |
| Supply Ability: | 360 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 5.5KW |
| Dimension(L*W*H): | 4800*1200*1800(mm) | Weight: | 4200kg |
| Warranty: | 1 Year | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | After-sales Service Provided: | Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Blanket Lock Stitch Quilting Machine |
||
Product Description
Computerized Multi Needle Lock Stitch Quilting Machine For Blanket
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5 |
YGB96-3-6 |
|
Dimension(L*W*H) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
4800*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" Inch |
3"+2" Inch |
3"+3" Inch |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Shuttle model |
7 or 10 |
7 or 10 |
7 or 10 |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
5.5KW |
5.5KW |
5.5KW |
|
Gross weight |
4200kg |
4200kg |
4200kg |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

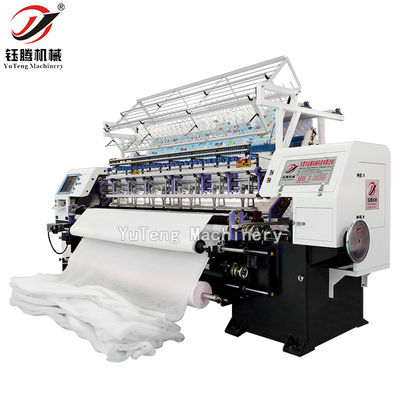

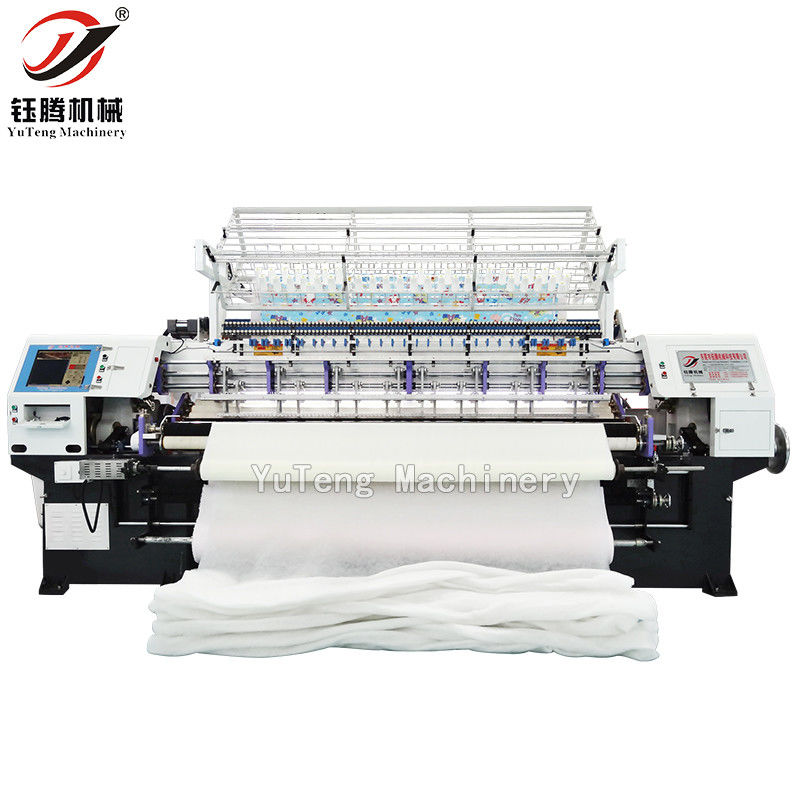

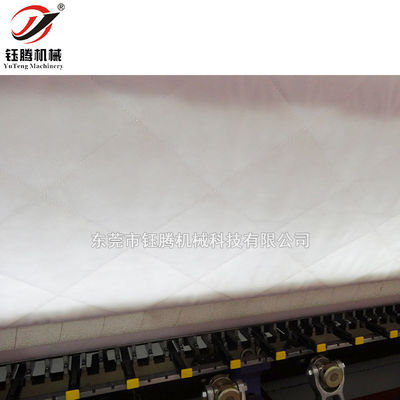

Quilting Machine Pictures :
