Computerized Multi Needle Lock Stitch Quilting Machine Shuttle Holder Quilting Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $40,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 R/min | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 5.5KW |
| Dimension(L*W*H): | 4900*1200*1800(mm) | Weight: | 4100 |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Shuttle Model: | 7 Or 10 | Port: | Shenzhen/Guangzhou |
| Highlight: | Shuttle Holder Quilting Machine |
||
Product Description
Computerized Multi Needle Lock Stitch Quilting Machine Shuttle Holder Quilting Machine
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Technical parameters :
|
Model |
YGB96-2-3 |
YGB96-3-5 |
YGB96-3-6 |
|
Dimension(L*W*H) |
4900*1200*1800(mm) |
4900*1200*1800(mm) |
4900*1200*1800(mm) |
|
Quilting Width |
2450mm |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" |
3"+2" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
254mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
5.5KW |
5.5KW |
5.5KW |
|
Gross weight |
4100kg |
4100kg |
4100kg |
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

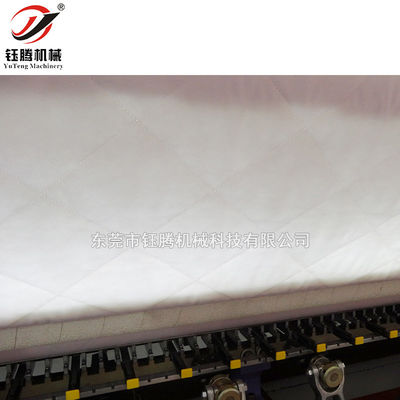

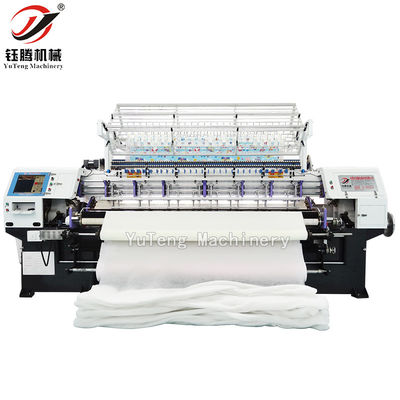

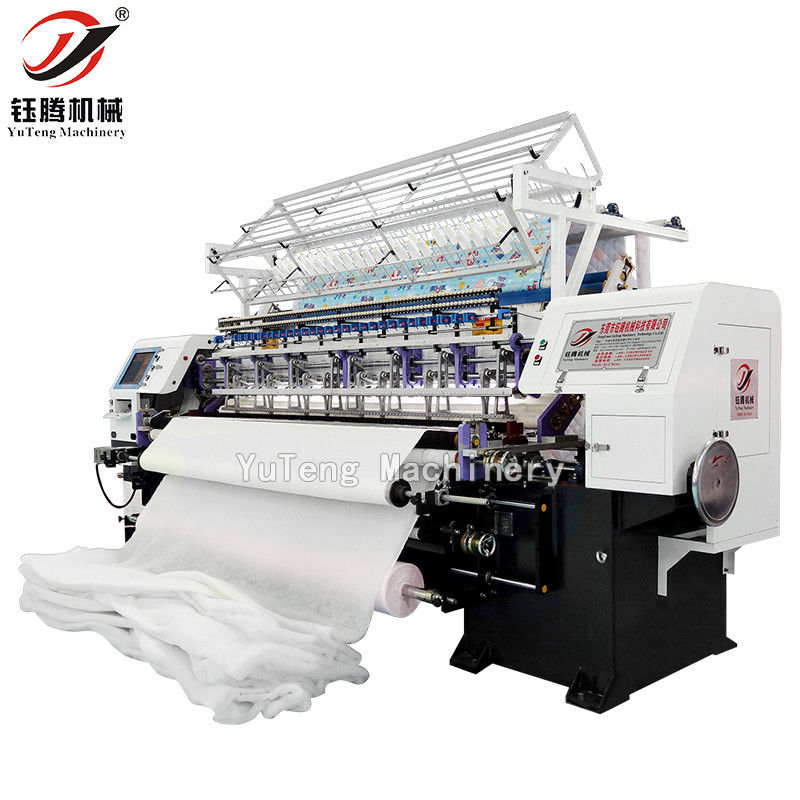

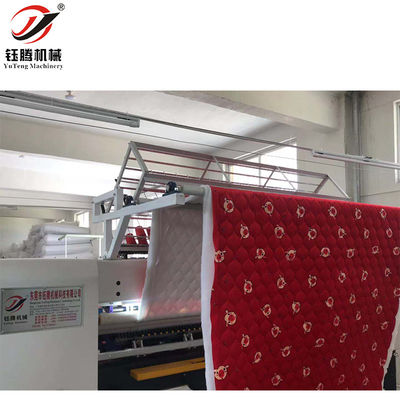

Quilting Machine Pictures :
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Can provide quilted fabric samples.
6,We welcome customers to visit our factory to see our manufacturing processes firsthand and understand the quality standards we adhere to. This visit allows you to gain insights into our production capabilities and witness our commitment to delivering top-notch products.
