Automatic Lock Stitch Quilting Machine For Down Coat Sewing Multifunctional
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
| Certification: | CE Certificate |
Payment & Shipping Terms:
| Price: | $10,000.00 - $30,000.00/sets |
|---|---|
| Packaging Details: | Seaworthy packing |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Showroom Location: | Viet Nam, South Korea |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Max Sewing Speed: | 800 RPM | Max Sewing Thickness: | 25mm |
| Number Of Head: | Multi Needle | Moving Style: | Roller |
| Voltage: | 380V/220V | Power: | 3.5kw |
| Dimension(L*W*H): | 3800*1200*1800(mm) | Weight: | 3200kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Viet Nam, South Korea |
| Port: | ShenZhen /GuangZhou | ||
| Highlight: | Lock Stitch Quilting Machine Automatic,Lock Stitch Quilting Machine Multifunctional,Down Coat Automatic Quilting Machine |
||
Product Description
Lock Stitch Quilting Machine Quilting Machine For Jack Down Coat Multi Needle Industrial Sewing Machine
Features:
Computerized Speed Governing: The machine features computerized speed control, allowing you to adjust the sewing speed according to your requirements. This flexibility ensures optimal stitching results and efficient operation.
Multi-Needle Design: Equipped with multiple needle rows, the machine enables simultaneous quilting of multiple patterns, significantly enhancing productivity. The space between needle rows can be adjusted to accommodate different quilting widths.
Sturdy Construction: The machine is built with a sturdy and durable aluminum alloy needle bar frame structure. It offers excellent stability and precision during the quilting process, resulting in high-quality stitch formation.
Servo Drive Equipment: The saddles and rollers are driven by servo motors, ensuring smooth and precise movement. The spindle is controlled by frequency conversion, allowing for accurate control of the quilting process.
Easy Operation: The machine features user-friendly controls and interfaces, making it easy to operate even for beginners. It runs smoothly with low noise and has a low thread-break rate, reducing downtime and increasing efficiency.
Technical parameters :
|
Model |
YGB64-2-3 |
YGB64-3-5 |
YGB64-3-6 |
|
Dimension(L*W*H) |
3800mm*1200mm*1800mm |
3800mm*1200mm*1800mm |
3800mm*1200mm*1800mm |
|
Quilting Width |
1650mm |
1650mm |
1650mm |
|
Needle rows |
2 |
3 |
3 |
|
Space between needle rows |
3" |
3"+2" |
3"+3" |
|
Space between needle |
25.4mm |
25.4mm |
25.4mm |
|
X-axis movement displacement |
203.2mm |
304.8mm |
304.8mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
≤25mm |
|
Stitch length |
2-6mm |
2-6mm |
2-6mm |
|
Speed of operation(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
20-120(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
16#,19# |
|
Shuttle model |
7 or 10 |
7 or 10 |
7 or 10 |
|
Quilting Speed(r/min) |
300-800(RPM) |
300-800(RPM) |
300-800(RPM) |
|
Voltage(AC) |
380V/60HZ,3-Phase 220V/50HZ,3-Phase |
380V/60HZ,3-Phase 220V/50HZ,3-Phase |
380V/60HZ,3-Phase 220V/50HZ,3-Phase |
|
Total power |
3.5KW |
3.5KW |
3.5KW |
|
Gross weight |
3200kg |
3200kg |
3200kg |
Machine details :
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

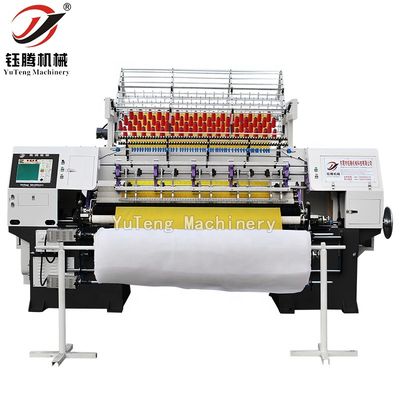

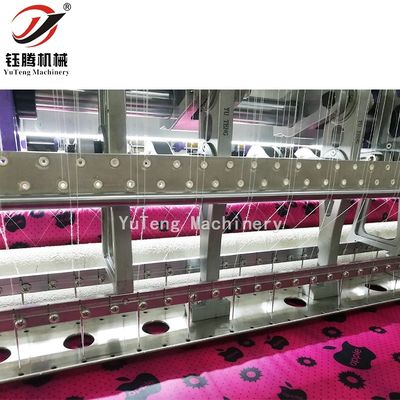

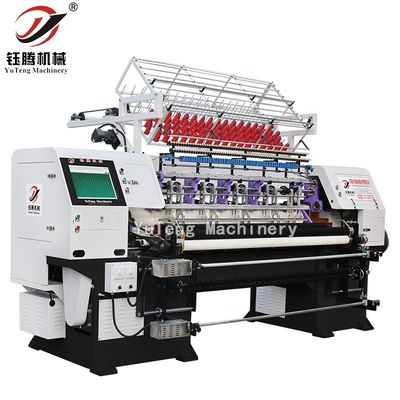

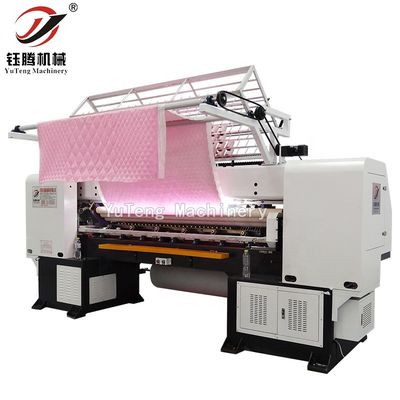

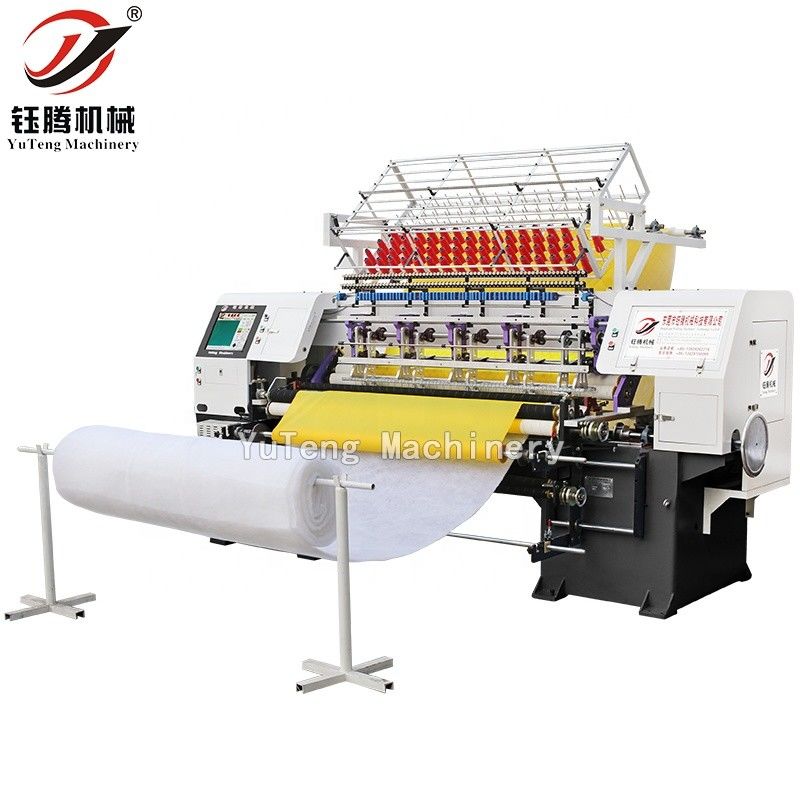

Quilting Machine Pictures :
Certificate :
Company pictures :
Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
