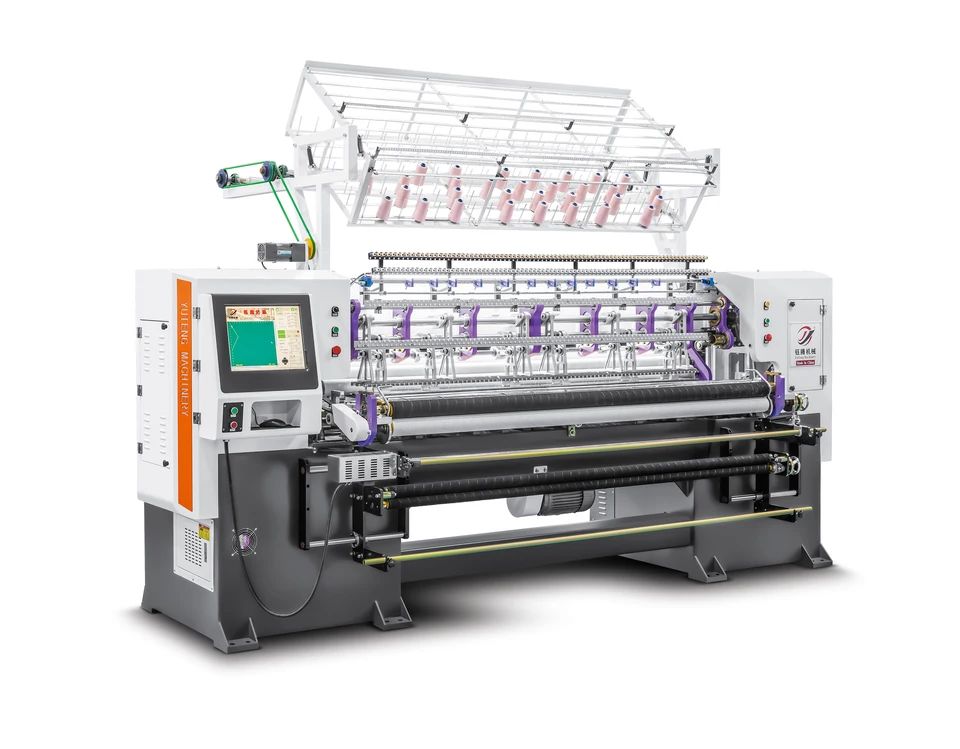

Ultra High Speed Computerized Lock Stitch Multi Needle Quilting Machine For Making Textile Bedding
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Certification: | CE |
| Model Number: | YGH96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | FOB 25000-40000 USD/SET |
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | High Speed Industrial Quilting Machine | Video Outgoing-Inspection: | Provided |
|---|---|---|---|
| Dimension(l*w*h): | 4555*1400*1800mm | Core Components: | PLC, Bearing, Motor |
| Max Sewing Speed: | 1400r/min | Max Sewing Thickness: | 25mm |
| Warranty: | 1 Year | Belongs To: | Quilt Sewing Machine Textile Sewing Machine |
| Application: | For Quilt Duvet Bed Cover Sewing | ||
| Highlight: | Ultra High Speed Computerized Quilting Machine,Multi-Needle Computerized Quilting Machine,Computerized Lock Stitch Quilting Machine |
||
Product Description
Ultra High-Speed Computerized Lock Stitch Multi-Needle Quilting Machine
Main Features:
1.Comprehensively upgrade and strengthen each transmission structure to truly realize high-speed operation and stable production.
2.The external computer control system can effectively reduce the adverse effects of high-speed operation on the electronic control.
3. The computer can adjust the speed of 100-1400 rpm, and the stitch adjustment is 2-12mm.
4. The speed, stitch and various pattern compensation functions can be adjusted arbitrarily during the operation of the equipment.
5. The system is equipped with a "return” function to solve the work of missing quilting and stitching between processing and changing shuttles.
6. The needle row movement adopts servo drive mode, and the spindle adopts frequency conversion control.
7. Dual clutch device, to solve the synchronization problem of rollers in front and back.
8. 360 degree free quilting come with unlimited multi-span quilting independent patterns.
9. Automatic thread-break detection unit. Infrared sensor make sure more safety operation.
Technology Parameters:
|
Model |
96 Series |
|
|
96-2-3(S/B) |
96-3-4/4.5/5/6(S/B) |
|
|
Dimension(L*W*H) |
4555mm*1400mm*1800mm |
4555mm*1400mm*1800mm |
|
Quilting Width |
2450mm |
2450mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" |
3"+1"/1.5"/2"/3" |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
228.6mm(9") |
228.6mm(9") |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-12mm |
2-12mm |
|
Speed of operation(m/hour) |
20-200(m/hour) |
20-200(m/hour) |
|
Model of shuttle |
7#/10# |
7#/10# |
|
Model of needle |
14#,16#,19# |
14#,16#,19# |
|
Quilting Speed(r/min) |
100-1400(r/min) |
100-1400(r/min) |
|
Voltage(AC) |
380V/50HZ , 220V/60HZ ,3-Phase |
380V/50HZ , 220V/60HZ ,3-Phase |
|
Total power |
6KW |
6KW |
|
Gross weight |
4800KG |
4800KG |
Machine Detail:
Related Machines:
production line:Customized Machinery+Computerized panel cutter machine
Packing And Shipping:
Generally speaking, the packing can be carried out with film and box, which can be packed according to the customer's requirement.
Certificate:
FAQ:
Q1: Warranty,Quality and Service
A:We provide one year warranty.And we provide fast online guidance when received your questions,lifetime service.
Q2: Experience,Professional and Engineer
A:We are a quilting machine manufacturer with 11 years experience,Our engineer online every day,we will give best guide before buying and after sale service
Q3: Advantage and Why choose us
A:We have rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
