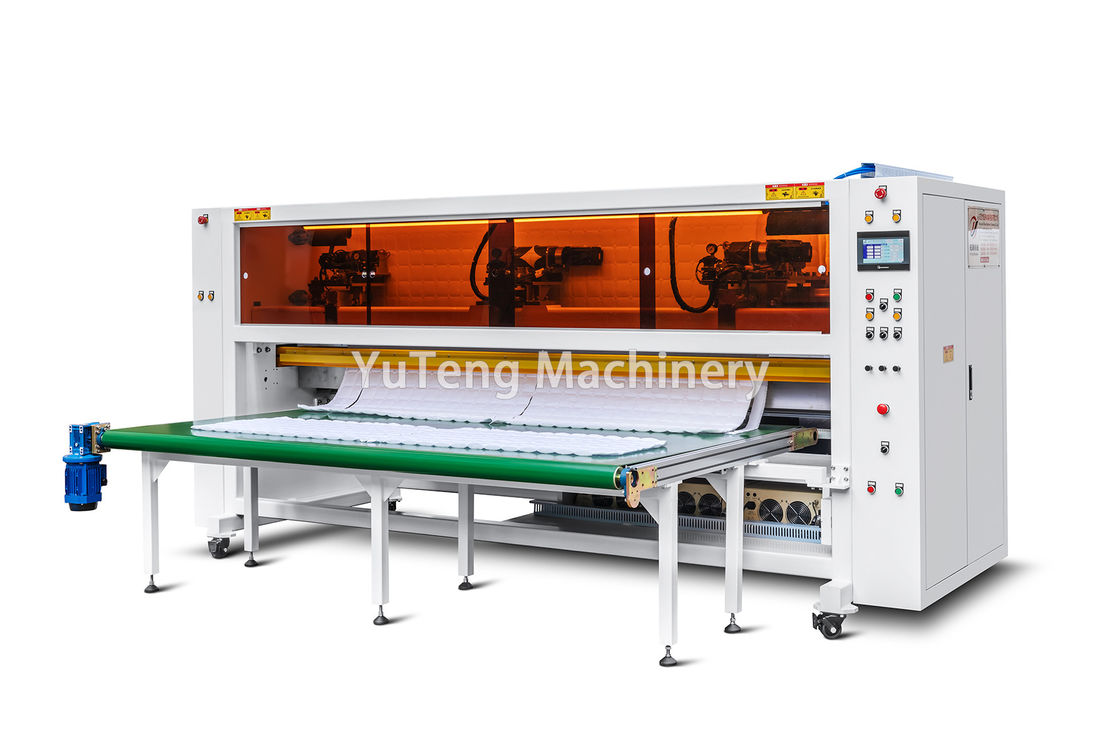

Computerized Automatic Home Textile Fabic Fillet Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | YuTeng |
| Model Number: | YTCM96-Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | film&paper |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Machine Model: | YTCM96-Y | Machine Size（L*W*H））: | 3700*2500*1750MM |
|---|---|---|---|
| Condition: | New | Video Outgoing-Inspection: | Provided |
| Work Voltage: | 380V/220V，3-Phase | Place Of Origin: | Guangdong, China |
| Warranty: | 1 Year | Machine Weight: | 1200Kg |
| Cutting Width: | 600-2300MM | Cutting Thickness: | <=25MM |
| Highlight: | Automatic Home Textile Cutting Machine,Computerized Fabic Fillet Cutting Machine,Computerized Home Textile Cutting Machine |
||
Product Description
Computerized Automatic Fabric Fillet Cutting Machine
Product Description:
This machine is suitable for fillet,cross cutting,scutting and other products of home textile fabric processing.It is suitable for matching with quilting machine,or can be used alone.
Special Features:
1,Innovatively introduce advanced ultrasonic cutting technology to realize cutting automatic rounded corner function, greatly saving labor cost and improving production efficiency (patent structure);
2,High precision upper and lower four roller structure, combined with encoder code counting and multiple servomotor motion control, can ensure that the horizontal cutting size accuracy error is kept within 1cm;
3,High precision, high steel moving saddle design structure, so that the adjustment size of the operation is more stable, more simple;
4,Crosscutting knife with pneumatic automatic sharpening function, reduce the disassembly frequency of crosscutting knife, and improve the safety of use;
5,Equipped with infrared safety protection device, comprehensively improve the personal safety protection during the use of equipment;
6,Adopt GB 7 inch color touch screen PLC man-machine interface, touch screen sensitive, easy to operate, can realize the conversion between Chinese and English.

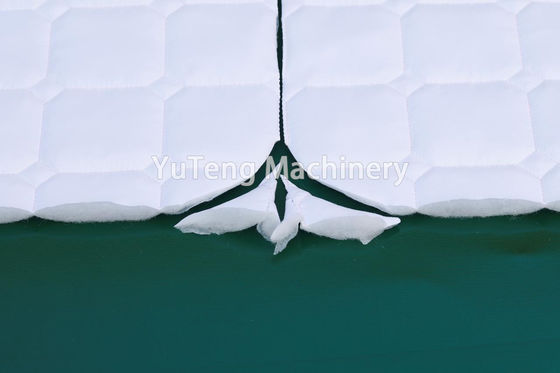

Middle opening rounded corner cropping effect

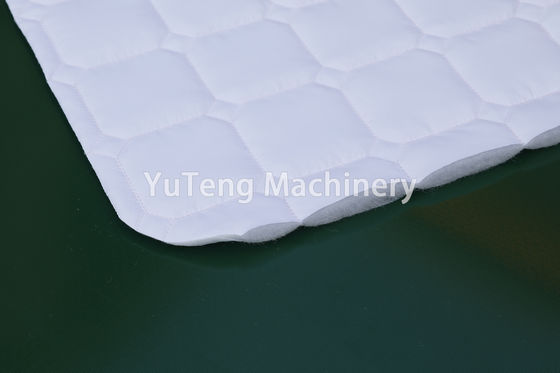

Edge knife fillet cutting effect
Crosscutting knife with pneumatic automatic sharpening function
GB 7 inch color touch screen PLC man-machine interface
combined with encoder code counting and multiple servomotor motion control
Technical Parameters:
|
Model |
YTCM96-Y |
|
Machine size (L x W x H) |
3700*2500*1750(mm) |
|
Fillet angle |
R10/R12 |
|
Fillet cutter |
2 knives/3 knives |
|
Cutting length |
500mm-unlimited |
|
Cutting width |
600-2300mm |
|
Cutting thickness |
<=25mm |
|
Cutting speed |
14.5m/minute |
|
Max power |
6 KW |
|
Air pressure |
0.6-0.8 Mpa |
|
Voltage |
380V/220V,3-Phase |
|
Machine weight |
1200 Kg |
*Customized model are available to meet client’s various needs
Related machines:
Support and Services:
1.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
2. Warrany: One year.(All parts are guaranteed one year for non-human-made damage)
3.Customized Model are available to meet client's various needs.
Packing and Shipping:
Usually we use plastic film and paper board to pack the machine,also we can pack the machine according to customer's requirements
FAQ:
Q1:Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
Q2:Do you have English Manual for each machinery?
A:Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q3:Can I print my Logo on the machine?
A:Yes, sure. We can provide professional customized logo services for customers.
Q4 Can you customize the machine for me?
A: Yes, we can customize according to customer's requirements.
Q5 Which ports do you usually ship at?
A: We can load container at: Shenzhen port.
