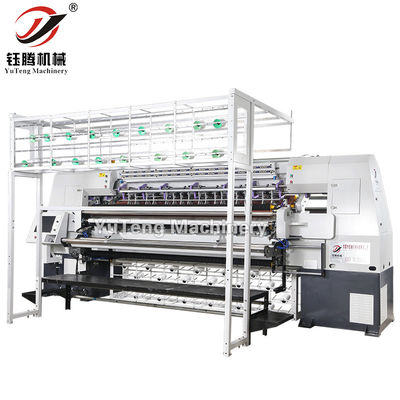

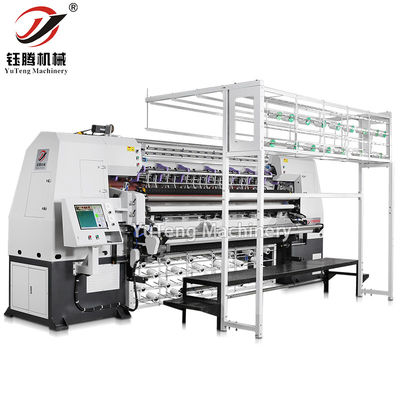

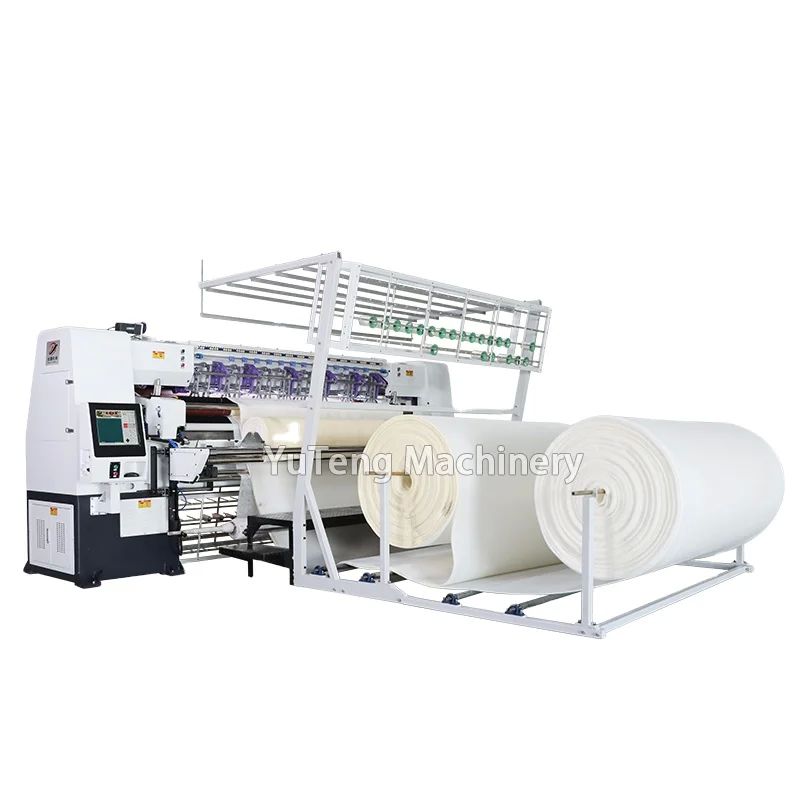

Automatic Mattress Production Machine For Comfortable Quilting Up To 2450mm Wide
Product Details:
| Place of Origin: | China |
| Brand Name: | Yuteng |
| Certification: | CE |
| Model Number: | YT3000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | elastic film&paper board |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Machine Size: | 5000*1600*2300mm | Quilting Width: | 2450mm |
|---|---|---|---|
| Quilting Speed（r/min）: | 100-1000 | Stitch: | 2-12 MM |
| Voltage: | 380V/220V | Type: | Automatic |
| Maximum Thickness: | 8cm | Machine Weight: | 5500kgs |
| Condition: | New Condition | ||
| Highlight: | Automatic Mattress Production Machine,Comfortable Quilting Mattress Production Machine,2450mm Wide Mattress Production Machine |
||
Product Description
Computerized Shuttleless Multi-Needle Quilting Machine
Product Description:
Suitable for quilt mattess pads,mattress panel,bedspreads,beddding,comforters,blankets,seat covers,decoration,etc
Product Features:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Technical Parameters:
| Model | YT-3000A |
| Dimension(L*W*H): | 5000*1600*2300(mm) |
| Quilting Width | 2450mm |
| Needle rows | 3 |
| Space between needle rows | 3''+3'' |
| Space between needle | 25.4mm |
| X-axis movement displacement | 305mm |
| Thickness of quilting | ≤80mm |
| Stitch length | 2-12mm |
| Speed of operation(m/hour) | 60-230(m/hour) |
| Model of needle | 21#,22#,23#,24# |
| Quilting Speed(r/min) | 100-1000(RPM) |
| Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
| Total power | 8KW |
| Gross weight | 5500kg |
About us:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Packing and Shipping:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging
Our Certificate:
