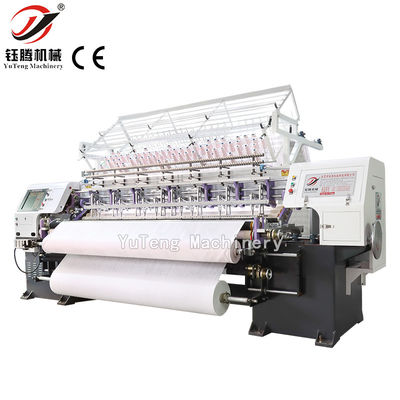

380V/50HZ Multi Needle Computerized Quilting Machine YGB96-2-3B
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 380V Computerized Quilting Machine,multi needle Computerized quilting machine,50HZ Computerized Multi Needle Quilting |
||
|---|---|---|---|
Product Description
♦ Technical parameters :
| Model | YGB96-2-3B |
| Dimension(L*W*H) | 4800mm*1200mm*1800mm |
| Quilting Width | 2450mm |
| Needle rows | 2 |
| Space between needle rows | 3"inch |
| Space between needle | 25.4mm |
| X-axis movement displacement | 254mm |
| Thickness of quilting | ≤25mm |
| Stitch length | 2-6mm |
| Speed of operation(m/hour) | 20-160(m/hour) |
| Shuttle model | 10# |
| Model of needle | 19# |
| Quilting Speed(r/min) | 300-1000(r/min) |
| Voltage(AC) |
380V/50HZ, 3-Phase or 220V/60HZ,3-Phase |
| Total power | 5.5KW |
| Weight | 4200KG |
♦ Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, shoes, cap, bags, gloves, sleeping bag, seat cover and Wall decoration etc.
♦ Product main features :
1.Adjusted speed by computer and the speed can reach 1000 r/min
2. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
3. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
4. Self-developed “YuTeng Quilting System”, easy to operation.
5. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
6. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
7. Adopt high precise and high rigidity import screw rod
8. 360° random quilting and limitless multi-span and independent quilting.
9. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
10. Infrared sensor makes the operation more secure.
11. Stable operation, low noise, high precision, few break line, easy operating.
12．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.

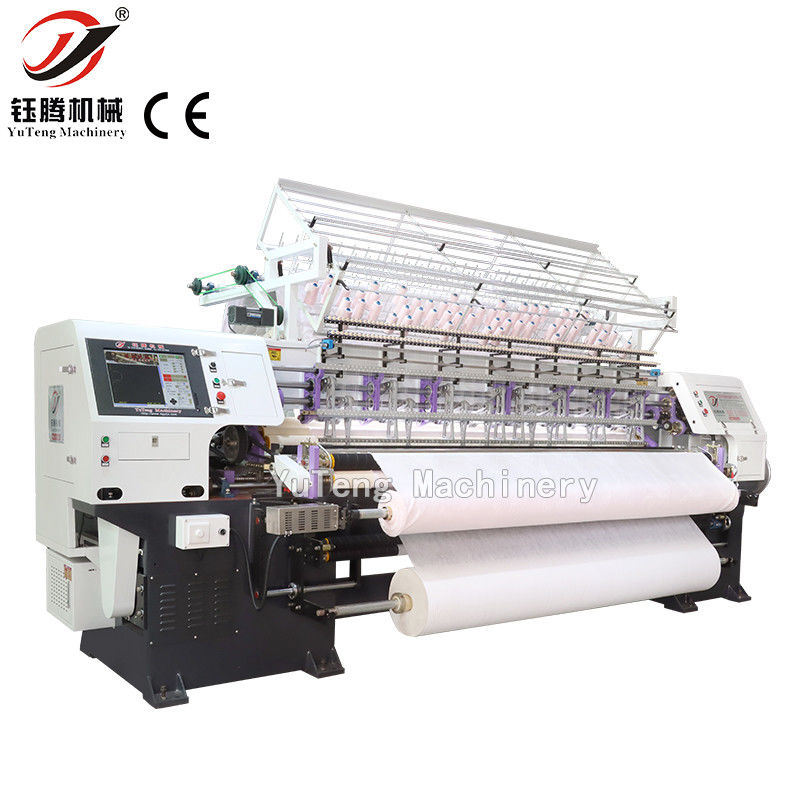

♦ Machine detail pictures :
