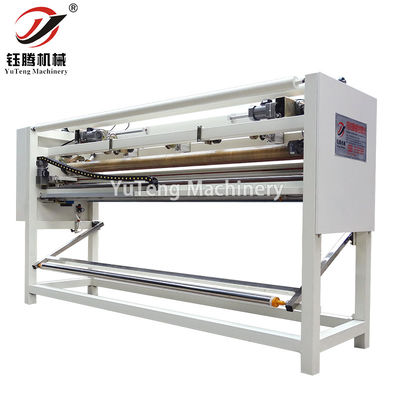

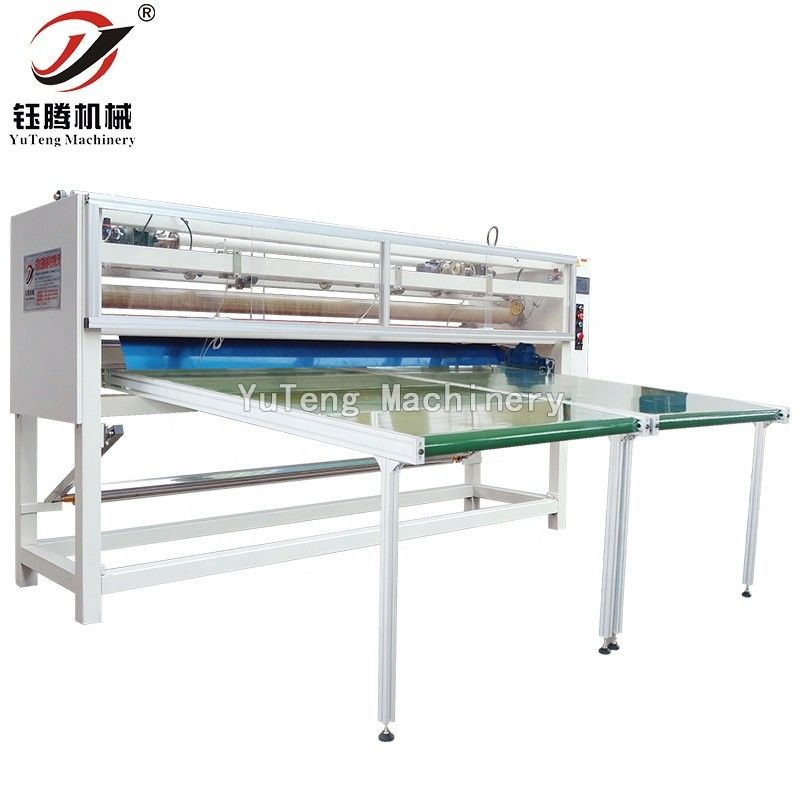

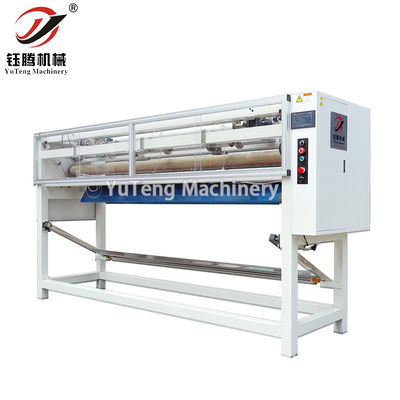

Electric Computerized Cutting Machine For Cross Cutting Edge Cutting Quilting
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YUTENG |
Payment & Shipping Terms:
| Price: | $8,000.00 - $10,000.00/sets |
|---|---|
| Packaging Details: | export package |
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Factory Use | Weight (KG): | 750 |
|---|---|---|---|
| Showroom Location: | Viet Nam, South Korea | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shenzhen/Guangzhou | ||
| Highlight: | Edge Computerized Cutting Machine,Cross Computerized Cutting Machine,Electric computerised Cutting Machine |
||
Product Description
Computerized Cutting Machine Electric Length Adjustment For Cross Cutting Edge Cutting Quilting
Computerized cutting machines prioritize safety during operation. They may be equipped with safety sensors and mechanisms to detect obstructions or human interference, automatically stopping the cutting process to prevent accidents. The machines may also have safety enclosures or shields to protect the user from moving parts or sharp cutting tools.
User-Friendly Interface: These machines are designed with a user-friendly interface that allows for easy operation and control. The software interface may offer features such as a visual preview of cutting patterns, intuitive design manipulation tools, or simulation modes to preview the cutting process. This makes the machine accessible to both novice users and experienced professionals.
Technical Parameters :
| Model | YTCM96-C |
| Machine size(L*W*H) | 3200*2200*2500(mm) |
| Cutting width | 2400mm(can be customized) |
| Cutting length | Min 30cm-Infinite |
| Cutting speed | Vertical cut 10m/min,horizontal cut 5 s/cut |
| Machine weight | 600KGS |
| Max power | 1.8KW |
| Voltage |
380V/50HZ , 3-Phase |
Product main features :
1.Using national standard 5-inch color touch screen PLC man-machine interface,easy to operate;
2.All computer materials,electrical appliances,motors and so on are adopted by CE certification,greatly extending the service life of the machine;
3.The length and width of the cut can be adjusted by electric length,which makes the operation more user-friendly;
4.Synchronous pressure bar for material feeding,the pressure is even,the feeding and slitting cut is more smooth,especially for the thin material edge trimming;
5.Box shape,optimized design,improve the whole machine running speed and quality of cutting scissors,cutting efficiency is higher.
Purpose :
For seat covers,sofa cushions,quilt covers,bedcovers,home decoration,export packaging,bedding processing,automatic cutting after sewing etc.For cross-cutting,slitting,edge cutting,quilting products,composite products,can also be used alone.

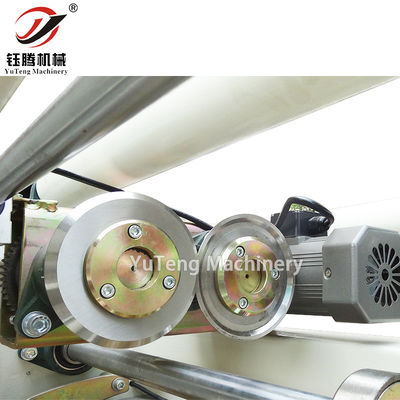

Effect diagram :
Certificate :
Company pictures :
