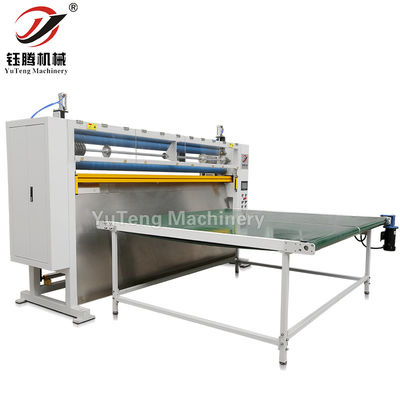

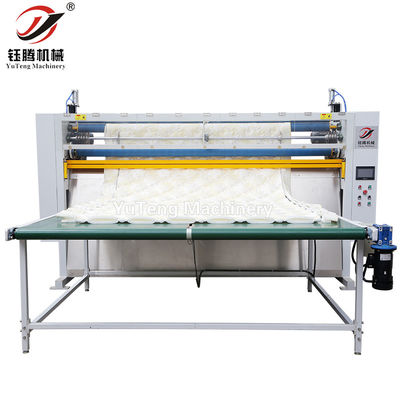

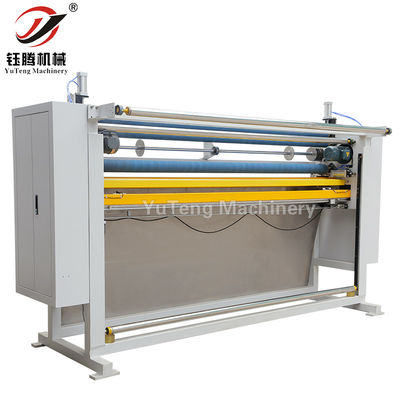

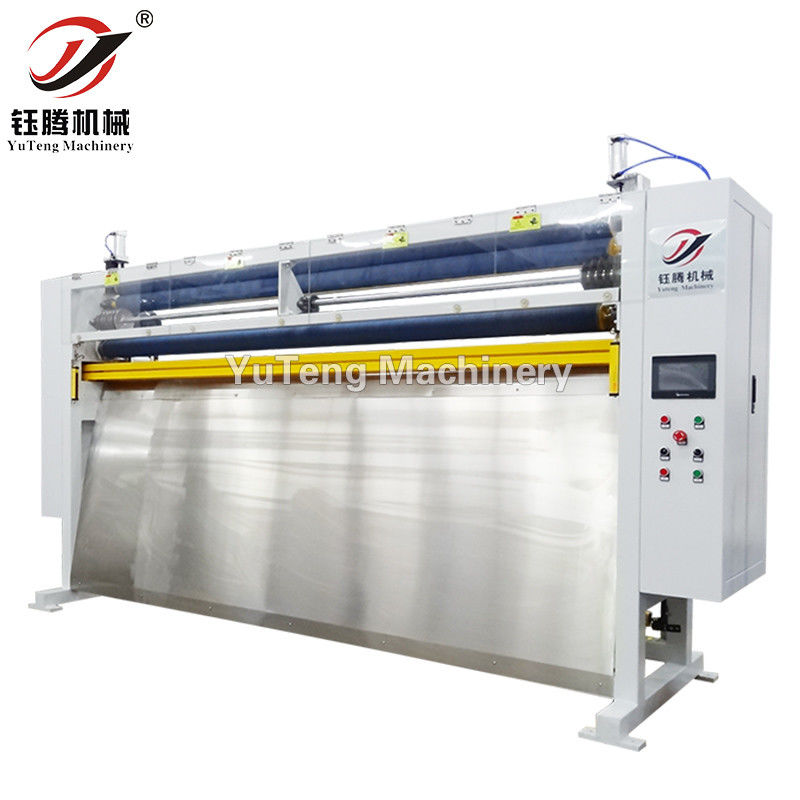

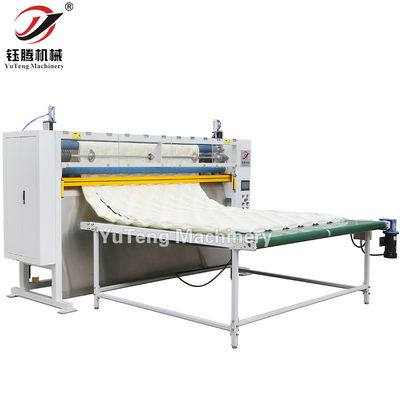

Industrial Computerised Cutting Machine Automatic For Quilted Fabric
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng |
Payment & Shipping Terms:
| Price: | $9,000.00 - $10,000.00/sets |
|---|---|
| Supply Ability: | 600 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Company Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Viet Nam, South Korea | Port: | Shenzhen/Guangzhou |
| Highlight: | Industrial Computerised Cutting Machine,Computerised Cutting Machine Automatic,Quilted Computerised Cutting Machine |
||
Product Description
Computerized Length And Width Cut Machine For Quilted Fabric
Computerized cutting machines come with a variety of cutting tools to suit different materials and cutting requirements. Common cutting tools include rotary blades for fabrics, drag knives for thin materials like paper and vinyl, oscillating knives for thicker materials like foam and leather, and laser modules for precise and intricate cuts. Some machines may offer the ability to interchange or upgrade cutting tools based on specific needs.
Automatic Material Feeding: Many computerized cutting machines feature automatic material feeding systems. These systems can handle large rolls or sheets of material and feed them into the machine for continuous cutting. Automatic material feeding not only increases productivity but also ensures consistent and accurate cutting by maintaining proper tension and alignment of the material.
Technical Parameters :
| Dimension(L x W x H) | 3700*1200*1940(mm) |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2400 mm |
| Thickness | 60 mm |
| Speed | 10 m/min |
| Power | 2.6 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ,220V/60HZ,3-Phase |
| Weight |
950 KG |
Product main features :
1, 7”touch screen,large screen for ease of operation
2, Hidden slitting blades are more convenient and safer
3, Electric controls for length and width of cross cut which make operations more human
4, Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil
5, Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.

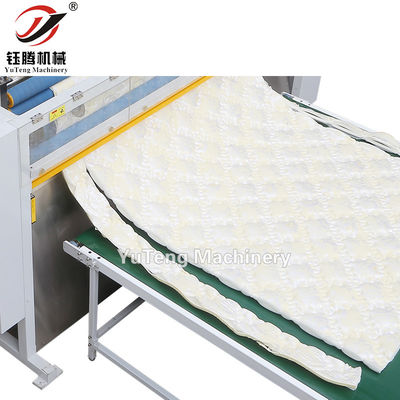

Effect diagram :
Certificate :
Company pictures :
